Veterinary X Ray Machine with Amorphous Silicon Detector HD Image Output Reusable Artificial Insemination for Dogs
Description
SPECIFICATIONS
Thank you for reading this post, don't forget to subscribe!
Brand Name: Manhua
Feature: Reusable,Adjustable,Touchscreen
Model Number: MH05-001V
Operating Voltage: AC 110-220V
Place of Origin: Shandong, China
Properties: artificial insemination
Type: Handheld,Pet Product,animal products
animal: Cat,GOAT,Horse,Rabbit,DOG,Bird,reptile,Sheep,Cattle,Pig,livestock
#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-3{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-4{text-align:center}#detail_decorate_root .magic-5{font-size:22px}#detail_decorate_root .magic-7{width:750px}#detail_decorate_root .magic-8{overflow:hidden;width:750px;height:1087.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-9{margin-top:0;margin-left:0;width:750px;height:1087.5px}#detail_decorate_root .magic-10{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-11{font-size:18px}#detail_decorate_root .magic-12{text-align:justify}#detail_decorate_root .magic-13{border-bottom-style:solid;border-bottom-color:#fff;font-family:Verdana;font-size:24px;color:#fff;background-color:#2ecbbe;text-align:center;font-style:normal;font-weight:bold;border-bottom-width:2px;margin-left:5px;margin-right:5px;padding-top:8px;padding-bottom:4px;padding-left:5px}#detail_decorate_root .magic-14{overflow:hidden;width:373px;height:450px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:28px;margin-left:4px;width:371px;height:378px}#detail_decorate_root .magic-16{overflow:hidden;width:373px;height:450px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-17{margin-top:-2px;margin-left:-5px;width:377.51677852348996px;height:450px}#detail_decorate_root .magic-18{font-size:18px;color:#08423b}#detail_decorate_root .magic-19{font-size:18px;color:#08423b;font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-20{color:#08423b}#detail_decorate_root .magic-21{color:#08423b;font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-22{font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-23{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-25{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-26{width:750px;border-collapse:collapse}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:55px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:81px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:129px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:28px;padding:5px 10px;width:99px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:28px;padding:5px 10px;width:116px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:28px;padding:5px 10px;width:142px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-33{overflow:hidden;width:373px;height:248.4753846153846px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:-9px;margin-left:5px;width:430px;height:286px}#detail_decorate_root .magic-35{overflow:hidden;width:373px;height:248px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-36{margin-top:-22px;margin-left:33px;width:287px;height:287px}#detail_decorate_root .magic-37{min-height:28px;padding:5px 10px;width:281px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-38{min-height:28px;padding:5px 10px;width:425px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-39{overflow:hidden;width:373px;height:324px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:-20px;margin-left:-2px;width:373px;height:373px}#detail_decorate_root .magic-41{overflow:hidden;width:373px;height:324px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:373px;height:349.9753086419753px}#detail_decorate_root .magic-43{font-size:18px;color:#084841;font-family:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit;font-weight:inherit}#detail_decorate_root .magic-44{font-size:18px;color:#084841}#detail_decorate_root .magic-45{font-size:18px;color:#084841;font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-46{overflow:hidden;width:373px;height:279.42733564013844px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:373px;height:279.42733564013844px}#detail_decorate_root .magic-48{overflow:hidden;width:373px;height:279px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-49{margin-top:-1px;margin-left:2px;width:373px;height:279.42733564013844px}#detail_decorate_root .magic-50{font-weight:normal}#detail_decorate_root .magic-51{overflow:hidden;width:750px;height:438.59649122807014px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-52{margin-top:-20px;margin-left:-14px;width:787px;height:460px}#detail_decorate_root .magic-53{overflow:hidden;width:750px;height:463.56783919597996px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-54{margin-top:0;margin-left:-1px;width:750.0000000000001px;height:463.56783919597996px}#detail_decorate_root .magic-55{overflow:hidden;width:750px;height:321.3166144200627px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-56{margin-top:-10px;margin-left:-19px;width:787px;height:337px}#detail_decorate_root .magic-57{font-size:16px}

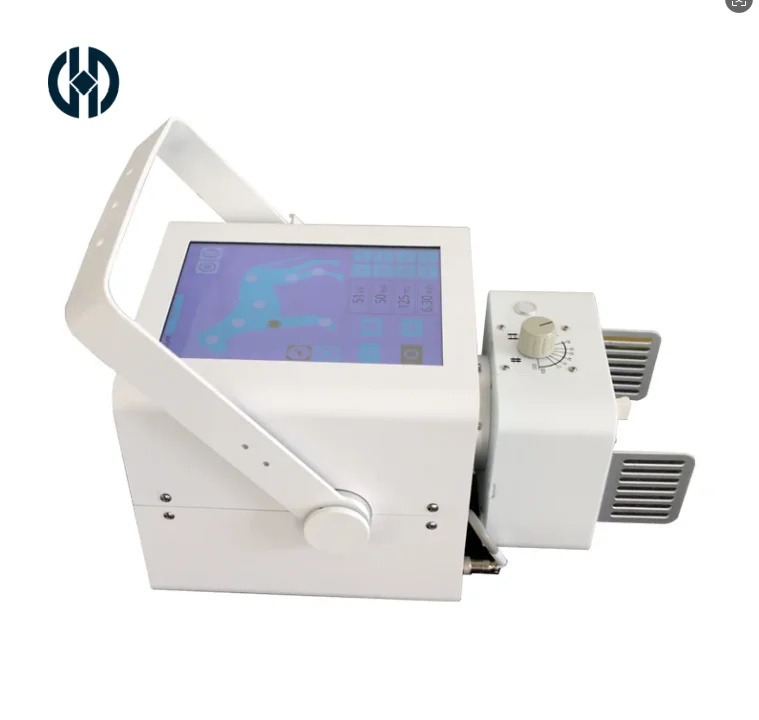

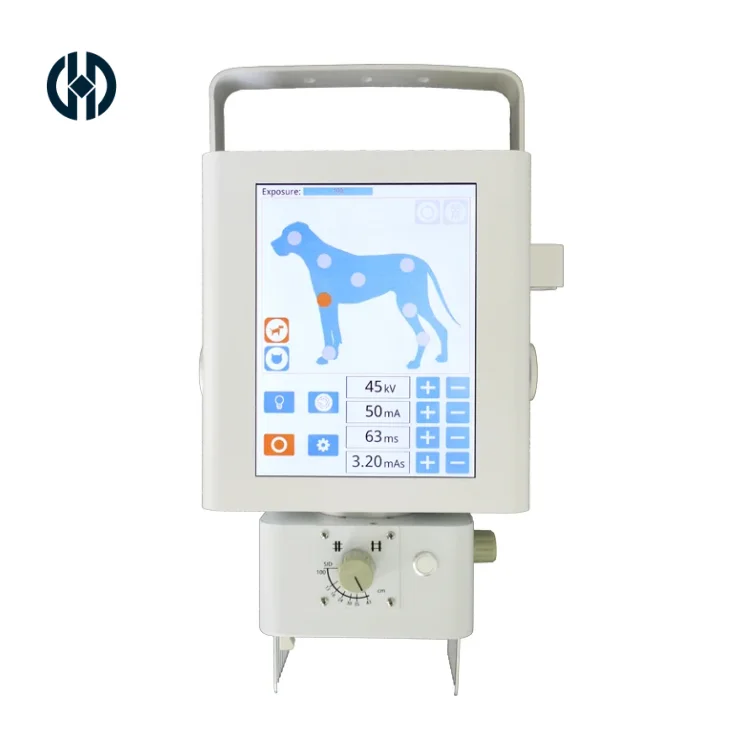

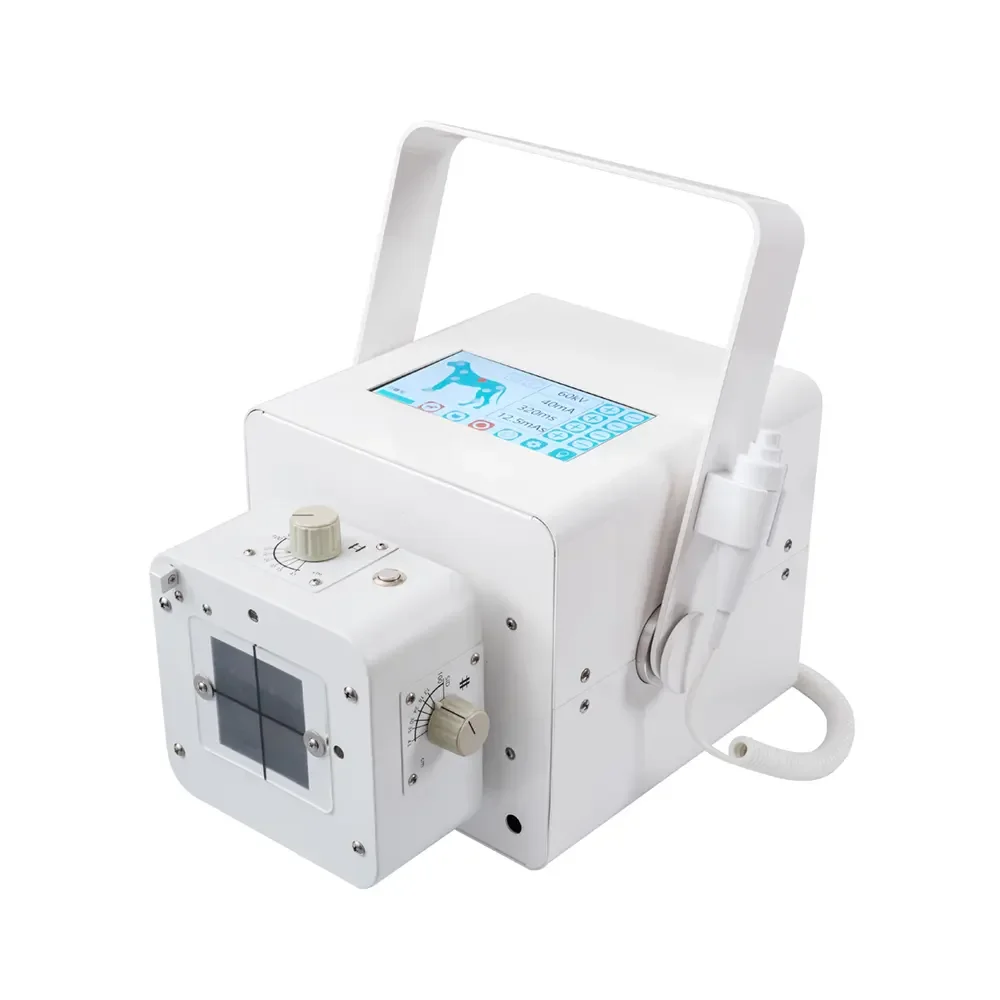

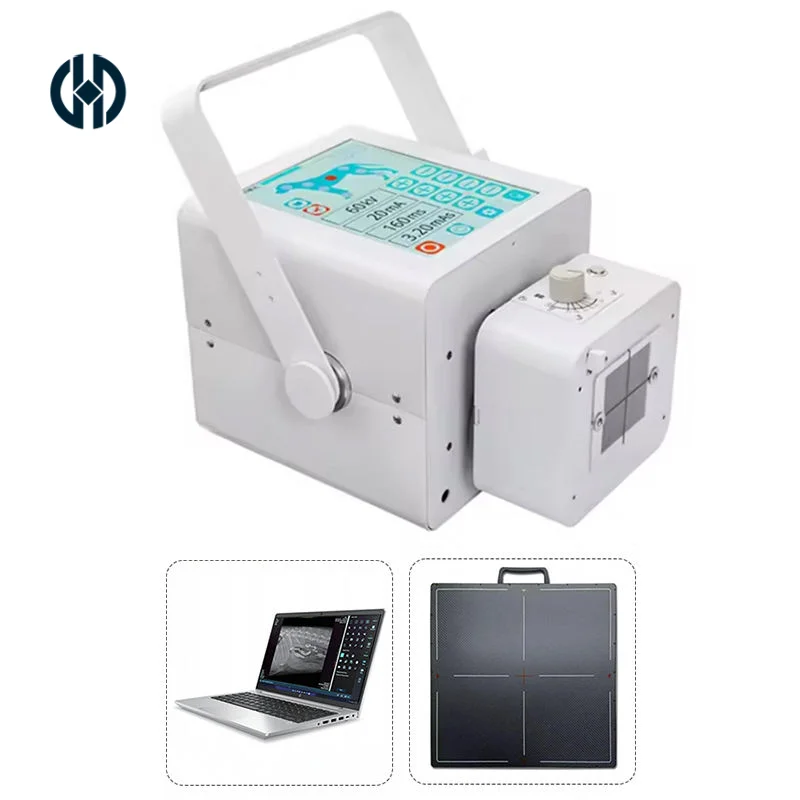

Manhua Veterinary X Ray Machine
with Amorphous Silicon Detector HD Image Output
High-Precision Portable Veterinary X-Ray System for Professional Diagnosis

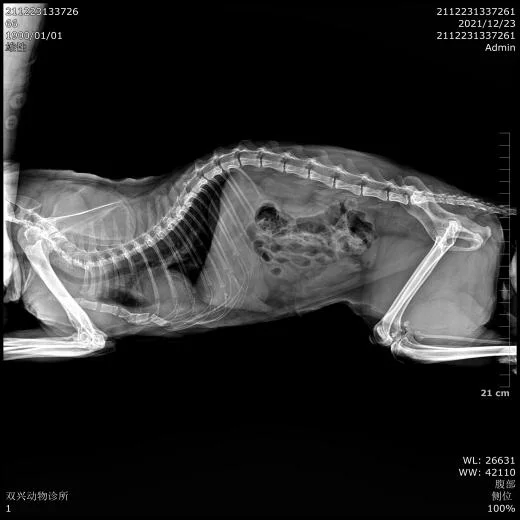

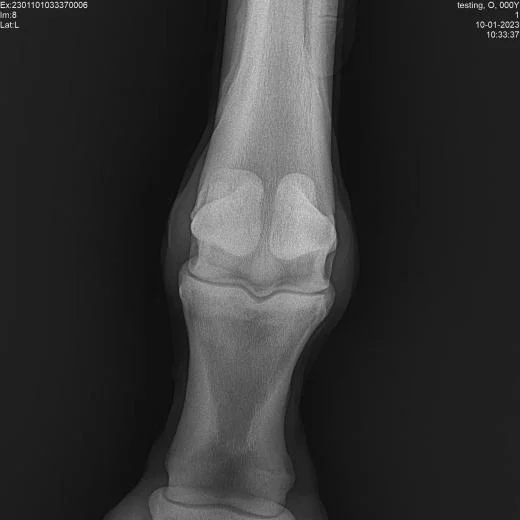

The MH-05 Digital Veterinary X-Ray Machine is a portable veterinary x-ray system designed for digital radiography of pets and animals. It delivers high-definition imaging performance for veterinary diagnosis, surgical guidance, and clinical interventions.
This compact and lightweight animal imaging equipment integrates advanced amorphous silicon detector technology and high-resolution imaging to enhance accuracy, efficiency, and convenience in daily veterinary practice.
Key Features & Advantages
Compact veterinary imaging system offering precision, mobility, and reliability.

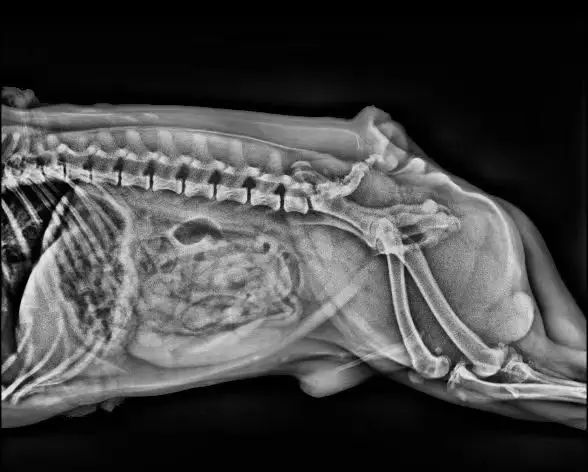

1. High-Definition Imaging Output – Produces crystal-clear images for accurate veterinary diagnosis.
2. Portable & Lightweight Design – Easy to transport and install in clinics, farms, or field conditions.
3. Electric Lifting System – Simple height adjustment for flexible positioning.
4. Universal Measurement Tools – Compatible with international veterinary imaging software.
5. Smart Alarm & Safety System – Adjustable sound and light alerts ensure operator safety.

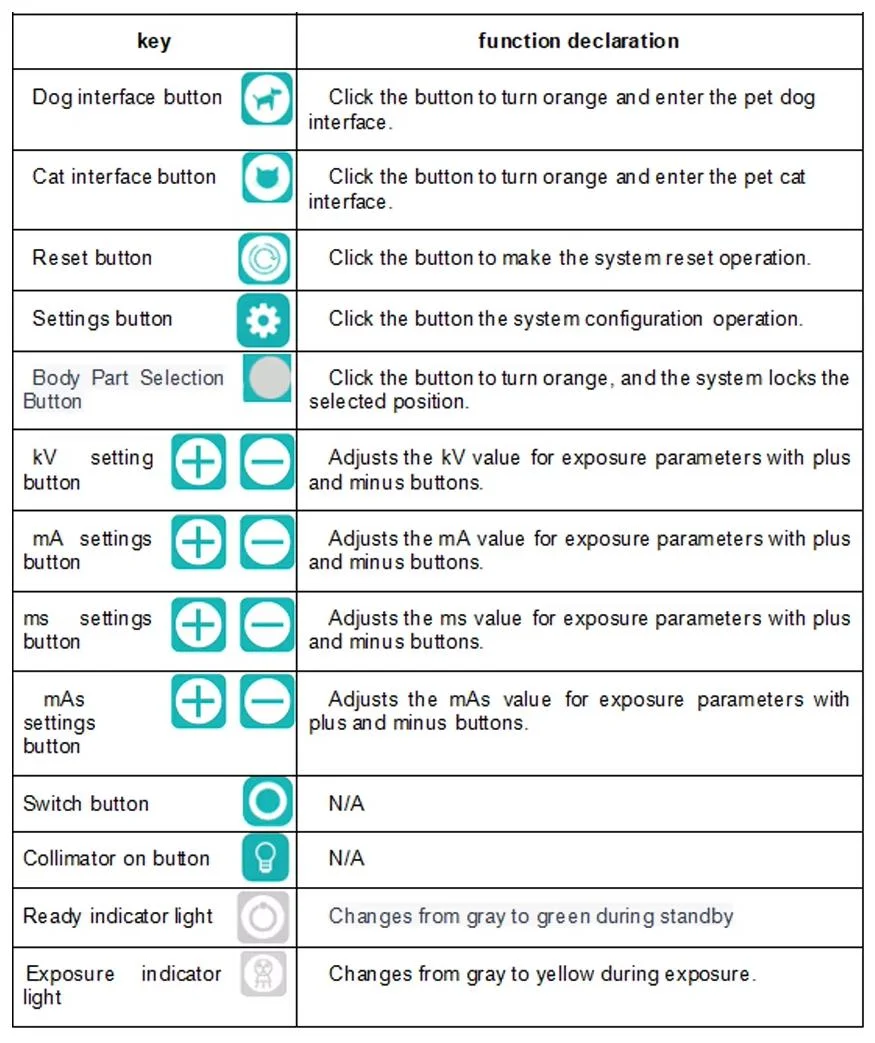

6. Touch-Screen Remote Exposure Control – Wireless operation increases workflow efficiency.
7. Flexible Compatibility – Supports multiple stands and racks for varied veterinary setups.
Versatile power models for different clinical environments.
|
Model
|
Power Output
|
Power Supply
|
kV Range
|
mA Range
|
Exposure Control
|
|
Type 1
|
12.5 kW
|
220V AC
|
40–130 kV
|
20–160 mA
|
Manual / Remote
|
|
Type 2
|
8 kW
|
220V / 110V AC
|
40–125 kV
|
20–125 mA
|
Manual / Remote
|
|
Type 3
|
5.6 kW
|
220V / 110V AC
|
40–120 kV
|
20–100 mA
|
Manual / Remote
|
|
Type 4
|
1 kW
|
24V DC
|
40–85 kV
|
1–16 mA
|
Remote
|
This flexibility makes the MH-05 ideal for veterinary clinics, mobile diagnostic units, and field animal imaging services.
Core Technical Specifications
Digital radiography for pets with outstanding image clarity and fast processing speed.
|
Specification
|
Description
|
|
Detector Type
|
Amorphous Silicon
|
|
Scintillator
|
Cesium Iodide
|
|
Effective Imaging Area
|
14 × 17 inch
|
|
Pixel Matrix
|
2500 × 3052
|
|
Pixel Size
|
140 μm
|
|
AD Conversion
|
16 bit
|
|
Spatial Resolution
|
3.5 lp/mm
|
|
Image Acquisition Time
|
1 second
|
|
X-ray Energy Range
|
40–160 kV
|
|
Trigger Mode
|
AED / Soft Trigger
|
|
Interface
|
GigE
|
|
Weight
|
35 kg
|
|
Power Source
|
24V DC / 100–240V AC
|
|
Load Bearing
|
Up to 135 kg
|
Application Fields
Digital radiography system for animals of all sizes.
●The MH-05 veterinary diagnostic equipment is widely applied in:
1. Horse farms and ranches
2. Pet hospitals and small animal clinics
3. Zoos and wildlife centers
4. Research and veterinary training institutions

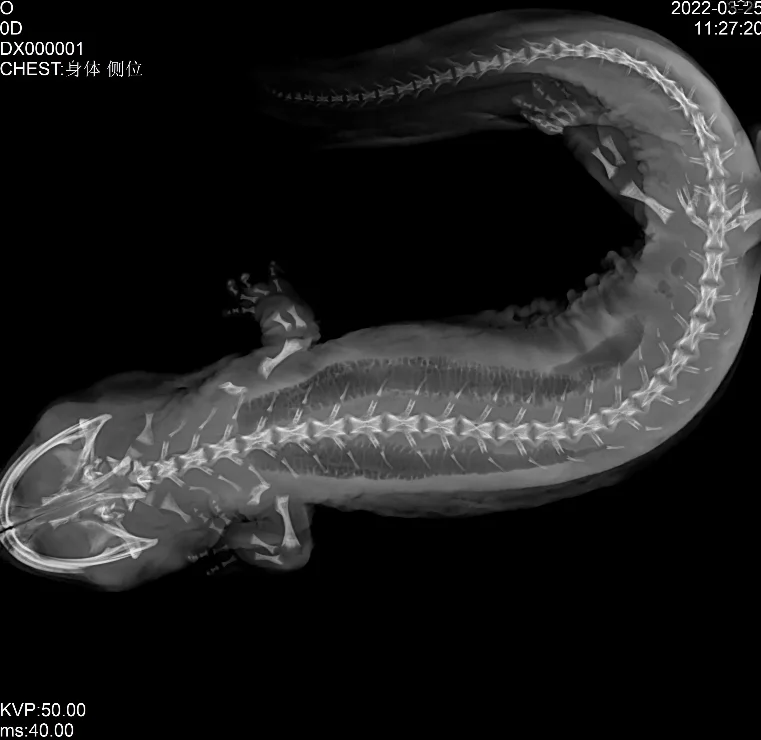

This portable x-ray unit supports imaging for small pets, livestock, and exotic animals, ensuring fast and reliable diagnostic results in diverse environments.

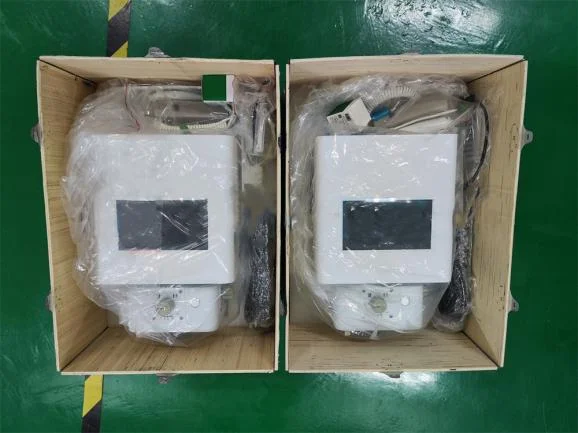

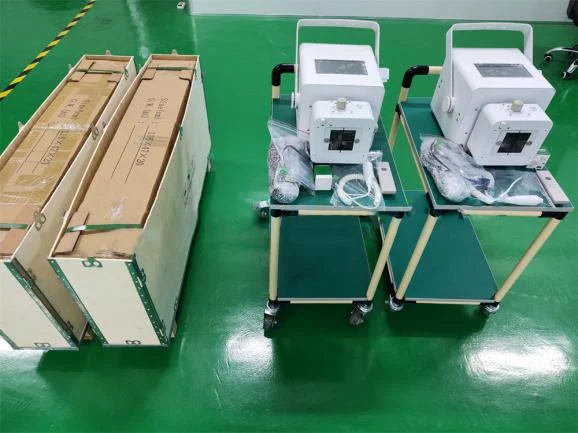

Packing & Delivery
Safe, efficient, and reliable worldwide delivery.
1. Ready Stock – Sufficient inventory for urgent orders.
2. Protective Packaging – Shockproof and moisture-proof packaging ensures product safety.
3. Global Logistics Support – Long-term partnerships with reliable shipping companies.
4. Comprehensive After-Sales Service – Full technical support and maintenance assistance.
2. Protective Packaging – Shockproof and moisture-proof packaging ensures product safety.
3. Global Logistics Support – Long-term partnerships with reliable shipping companies.
4. Comprehensive After-Sales Service – Full technical support and maintenance assistance.

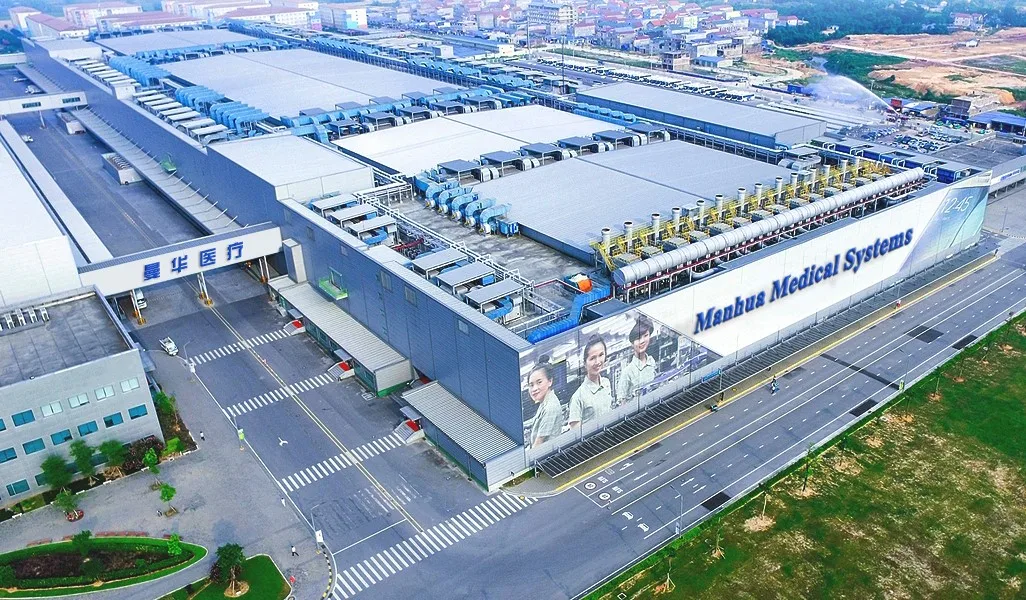

Why Choose Shandong Manhua
Trusted manufacturer of professional veterinary imaging solutions.
Manhua, as a leading professional medical equipment manufacturer in China, is specialized in the field of medical products research, development, production, sales and service. Our main products cover x-ray machine, shadowless lamp, ultrasound machine, hospital bed, medical cart, operating table, transfer trolley and etc. Being approved by CE and ISO certificates, our products are extensively used in the world and got highly praise from our clients.ICU professional Hospital Ambulance Portable patient monitor Medical Monitoring Medical Vitals Signs Machine Monitor.
Manhua has complete production facilities, sound management system and fine technique, with the production capability of OEM and ODM. Manhua has got 15 patents, passed the EU ISO13485 quality system certificate, some of products have passed Medical CE certification. ICU professional Hospital Ambulance Portable patient monitor Medical Monitoring.
Welcome to contact us for any inquiry!
Certificate
FAQ
1. Q: Where are you located and what is your market experience?
A: We are Manhua Medical, a professional manufacturer and exporter based in Shandong, China. Since our establishment in 2020, we have rapidly grown to serve a global clientele, with our products widely distributed across Western Europe (30%), Eastern Europe (20%), North America (10%), and many other regions. Our dedicated team of 11-50 people is committed to delivering quality medical equipment worldwide.
2. Q: How do you control the product quality?
A: We implement a strict two-stage quality control protocol:
* Pre-production Sample: A sample is always made for approval before mass production begins.
* Final Inspection: Every order undergoes a rigorous final inspection before it is shipped.
3. Q: What products do you offer?
A: We supply a comprehensive range of medical devices, including but not limited to:
* Patient Monitors
* Noninvasive Blood Glucose Meters
* Fetal Heart Rate Monitors
* Oximeters & Nebulizer Atomizers
* Blood Pressure Monitors
* Hospital Beds & Wheelchairs
* …and more.
4. Q: Why should I choose you as my supplier?
A: While our company was founded in 2020, the Manhua brand is built upon a solid foundation of over 20 years of experience in the medical products field. This deep industry knowledge ensures we understand market needs and can provide reliable, well-designed products that you can trust.
5. Q: What services do you provide?
A: We offer flexible and convenient services to facilitate smooth transactions:
* Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
* Accepted Payment Currency: USD, EUR, CNY
* Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
* Language Support: English, Chinese
A: We are Manhua Medical, a professional manufacturer and exporter based in Shandong, China. Since our establishment in 2020, we have rapidly grown to serve a global clientele, with our products widely distributed across Western Europe (30%), Eastern Europe (20%), North America (10%), and many other regions. Our dedicated team of 11-50 people is committed to delivering quality medical equipment worldwide.
2. Q: How do you control the product quality?
A: We implement a strict two-stage quality control protocol:
* Pre-production Sample: A sample is always made for approval before mass production begins.
* Final Inspection: Every order undergoes a rigorous final inspection before it is shipped.
3. Q: What products do you offer?
A: We supply a comprehensive range of medical devices, including but not limited to:
* Patient Monitors
* Noninvasive Blood Glucose Meters
* Fetal Heart Rate Monitors
* Oximeters & Nebulizer Atomizers
* Blood Pressure Monitors
* Hospital Beds & Wheelchairs
* …and more.
4. Q: Why should I choose you as my supplier?
A: While our company was founded in 2020, the Manhua brand is built upon a solid foundation of over 20 years of experience in the medical products field. This deep industry knowledge ensures we understand market needs and can provide reliable, well-designed products that you can trust.
5. Q: What services do you provide?
A: We offer flexible and convenient services to facilitate smooth transactions:
* Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
* Accepted Payment Currency: USD, EUR, CNY
* Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
* Language Support: English, Chinese
