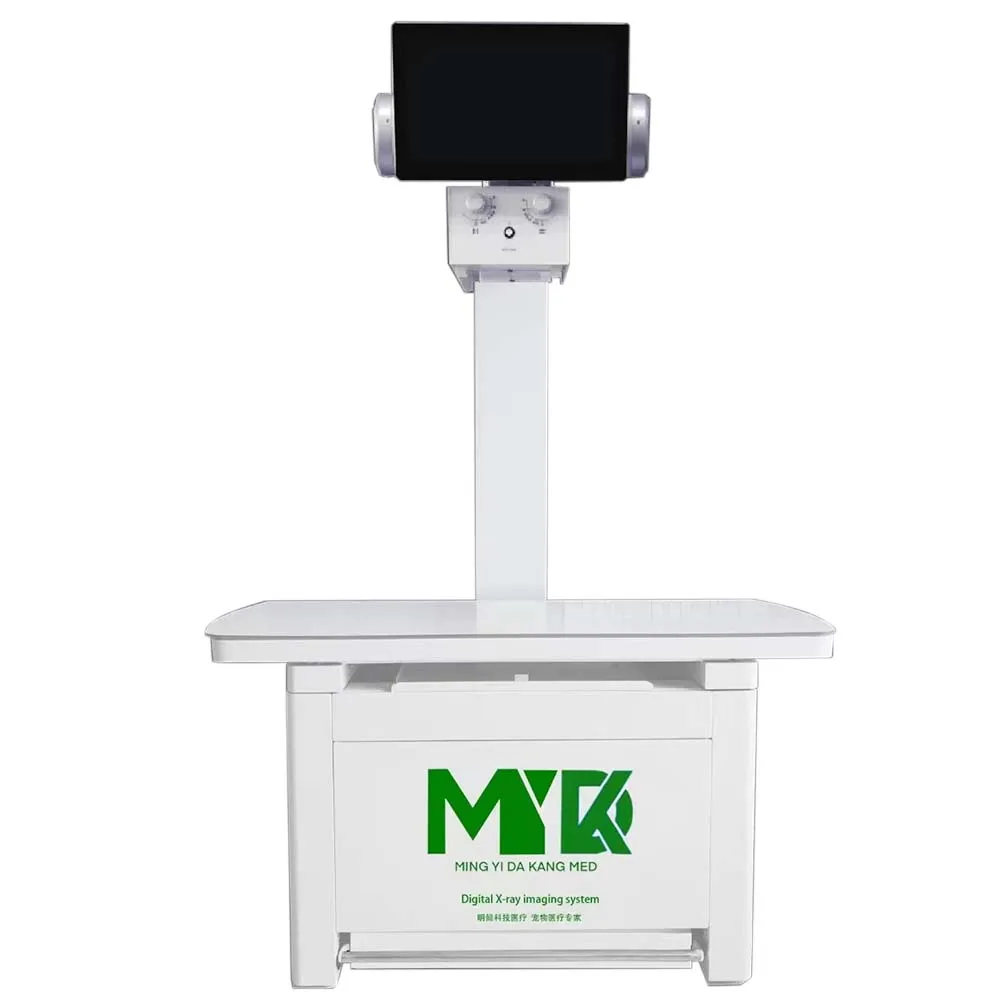

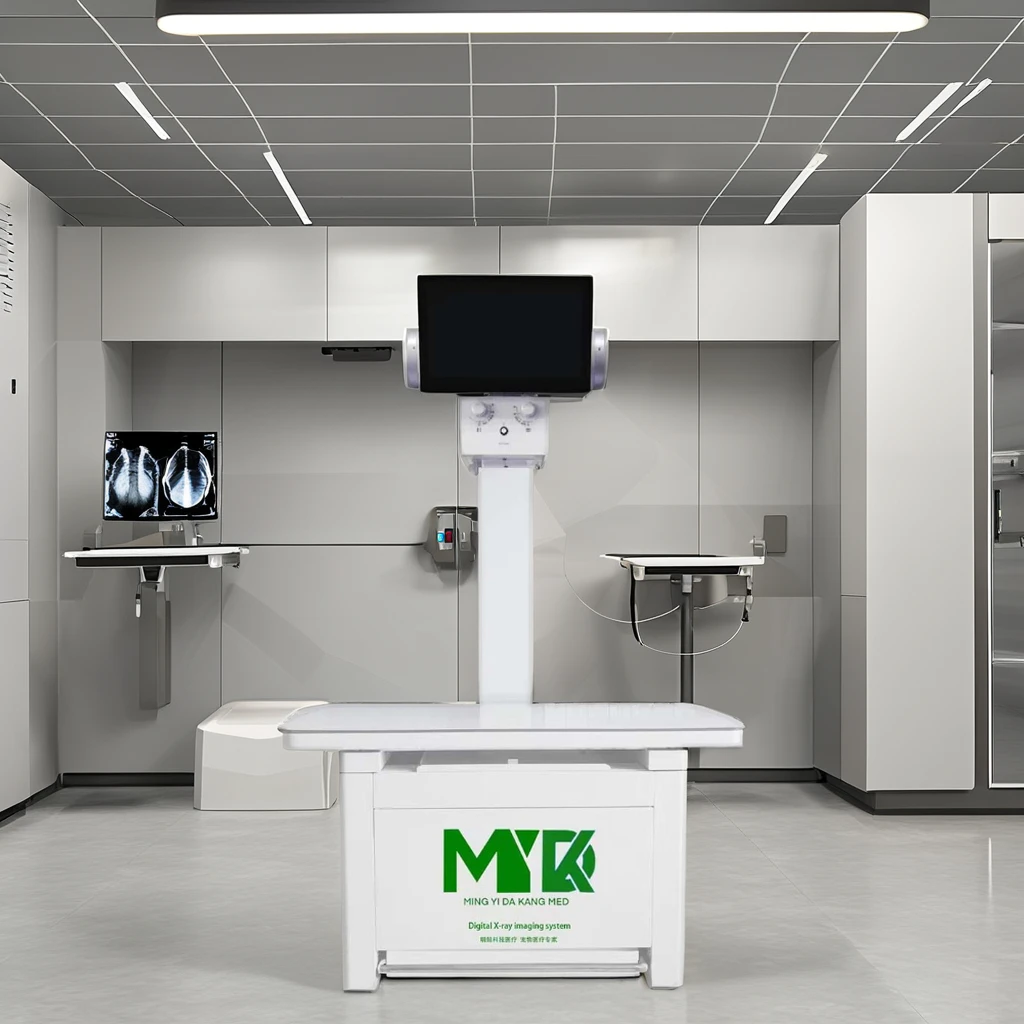

DR Motion Imaging New Animal-Specific Digital X-Ray System Veterinary Instrument for Pet Diagnosis
Description
SPECIFICATIONS
Thank you for reading this post, don't forget to subscribe!Application: Hospital,animal hospital,veterinary clinic
Brand Name: Mingyi Dakang
Maximum output current: 400ma
Model Number: MINGYIDX-VF
Place of Origin: Jiangsu, China
Power frequency: 50Hz
Properties: Image acquisition system

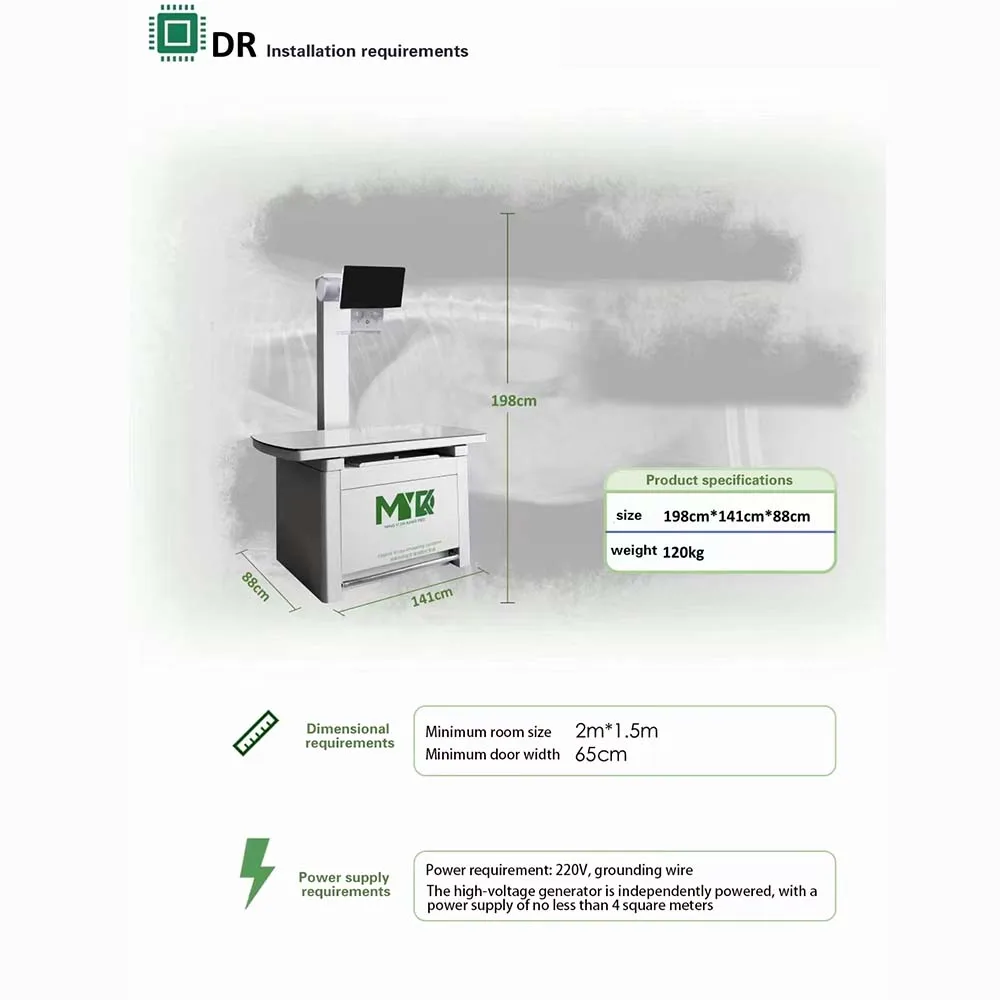

Size: 198cm*141cm*88cm
Tube current regulation range: 10mA~400mA
Usage: Animal Healthcare
Warranty: 1Year
animal: Cat,GOAT,Horse,Rabbit,DOG,reptile
power: 32kW
supply voltage: Single phase three wire system 220V
weight: 120kg
working frequency: >300kHz
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-4{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-5{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-6{margin-bottom:0}#detail_decorate_root .magic-7{position:relative;width:100%}#detail_decorate_root .magic-8{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-9{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-10{vertical-align:top}#detail_decorate_root .magic-11{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-12{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-13{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-14{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-15{width:750px;border-collapse:collapse}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:114px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-17{text-align:center}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:340.889px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:229px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:341px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:113.889px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:228.889px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-23{font-size:20px}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:591px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:590.889px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-26{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-27{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-29{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:329px;height:247px}
Product Description
applied range
This large-field MINGYI DX-VF digital medical X-ray system is mainly used in orthopedics, trauma, spinal orthodontics,
radiological intervention, etc. It can be used in hospitals to support large field of vision clinical applications such as total
spine photography, double lower extremity photography, myelography, complex trauma, artificial joint replacement, joint injury repair and reconstruction.
radiological intervention, etc. It can be used in hospitals to support large field of vision clinical applications such as total
spine photography, double lower extremity photography, myelography, complex trauma, artificial joint replacement, joint injury repair and reconstruction.
performance feature

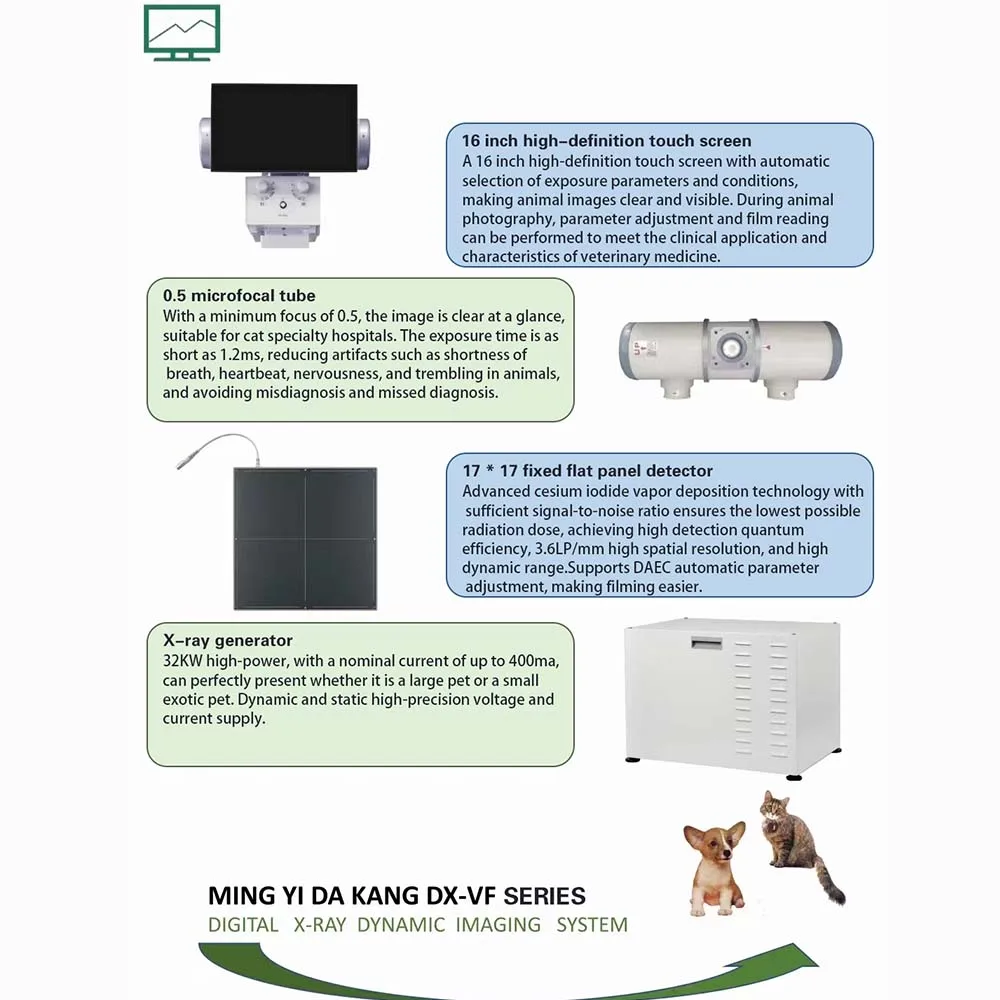

1.Large field photography/perspective, one machine multi-purpose! In addition to conventional still photography, this dynamic tablet MINGYI DX-VF large tablet has dynamic perspective and point film functions, perspective acquisition function can support large field of view, multi-angle visual observation. Through the visual dynamic image, combined with the point film function, it can well observe complex lesions, effectively capture key frames, and reduce the probability of patients taking multiple photographs, which is safe and efficient. Such as: whole spine status assessment, long bone joint motion, lower extremity venography valve function assessment, digestive tract function assessment, myelography and other large field of vision clinical applications.
2.High power/High heat capacity/Long standby This digital MINGYI DX-VF high power and high heat capacity ensures long standby and escorts lasting work. Whether it is photography mode or perspective mode, it can maintain continuous work for a long time, no appointment is required, and it can be taken as you go.
3.High frame rate dynamic tablet, better image quality (spatial resolution up to 3.6lp/mm).
4. high-quality dynamic flat detector, dynamic acquisition of 30 frames/second, to avoid missed diagnosis, misdiagnosis.
5.Efficient and practical touch control system, synchronous linkage with the operation desk.
6.High-power high-voltage generator can meet the needs of long-term large-scale photography and perspective, 500KHZ ultra-high inverter frequency, high ray quality, high-quality image source protection
Specification
|
serial number
|
name of parts
|
quantity
|
|
1
|
Animal 32KW diagnostic X-ray high-frequency high-voltage generator
|
1 unit
|
|
2
|
X-ray tube
|
1 unit
|
|
3
|
Beam limiter
|
1 unit
|
|
4
|
Photography bed
|
1 pan haha
|
|
5
|
High voltage cable
|
1 piece
|
|
6
|
Mingyi Dakang Animal Collection Software
|
1 set
|
|
7
|
Flat panel detector
|
1 piece
|
|
8
|
Computer host with display
|
1 set
|
|
9
|
15.6 Touch screen (optional)
|
1 piece
|
Main technical parameters
|
Number
|
technical parameter
|
|
1
|
X-ray generator
|
|
1.1
|
Power supply voltage: single-phase three wire system 220V
|
|
1.2
|
Power frequency: 50Hz
|
|
1.3
|
Power: 32kW
|
|
1.4
|
Maximum output current: 400ma
|
|
1.5
|
Working frequency>300kHz
|
|
1.6
|
Tube current regulation range: 10mA~400mA
|
|
1.7
|
Voltage regulation range: continuously adjustable within the range of 40kV~150kV, with a step size of 1kV
|
|
1.8
|
Exposure time and range: 0.001s~10.0s
|
|
1.9
|
Current time and range: 0.1mAs~320mAs
|
|
2
|
X-ray tube
|
|
2.1
|
Maximum peak tube voltage: 125kV
|
|
2.2
|
Focus: Small focus: 0.5mm; Main focus: 1.0mm
|
|
2.3
|
Anode input power: 10kW for small focus; Main focus 30kW
|
|
2.4
|
Anode speed: 2800rpm
|
|
2.5
|
Target angle: 16 °
|
|
2.6
|
Anode heat capacity: 140KHU
|
|
3
|
Beam limiter (100V)
|
|
3.1
|
Lead door control mode: manual
|
|
3.2
|
Radiation field: 0mm * 0mm-430mm * 430mm
|
|
3.3
|
Power supply: DC12V-24V
|
|
3.4
|
Light delay: 30 ± 5 seconds
|
|
3.5
|
Inherent filtration (75KV:>1.0mm Al)
|
|
3.6
|
Weight: 6KG+0.5KG
|
|
4
|
Photography bed (fixed column, bed surface floating in all directions)
|
|
4.1
|
Bed size: length x width=1400mmx600mm
|
|
4.2
|
Total height: 1960mm
|
|
4.3
|
Front and rear travel of bed surface: 150mm
|
|
4.4
|
Left and right travel of bed surface: 220mm
|
|
5
|
Flat panel detector
|
|
5.1
|
Sensors/scintillators; Amorphous silicon/cesium iodide
|
|
5.2
|
Size specification: 460 * 460 * 15mm
|
|
5.3
|
Pixel matrix column: 3072 * 3072
|
|
5.4
|
A/D conversion: 16bits
|
|
5.5
|
Pixel spacing: 140 μ
|
|
5.6
|
Extreme resolution: 3.6mm/LP
|
|
6
|

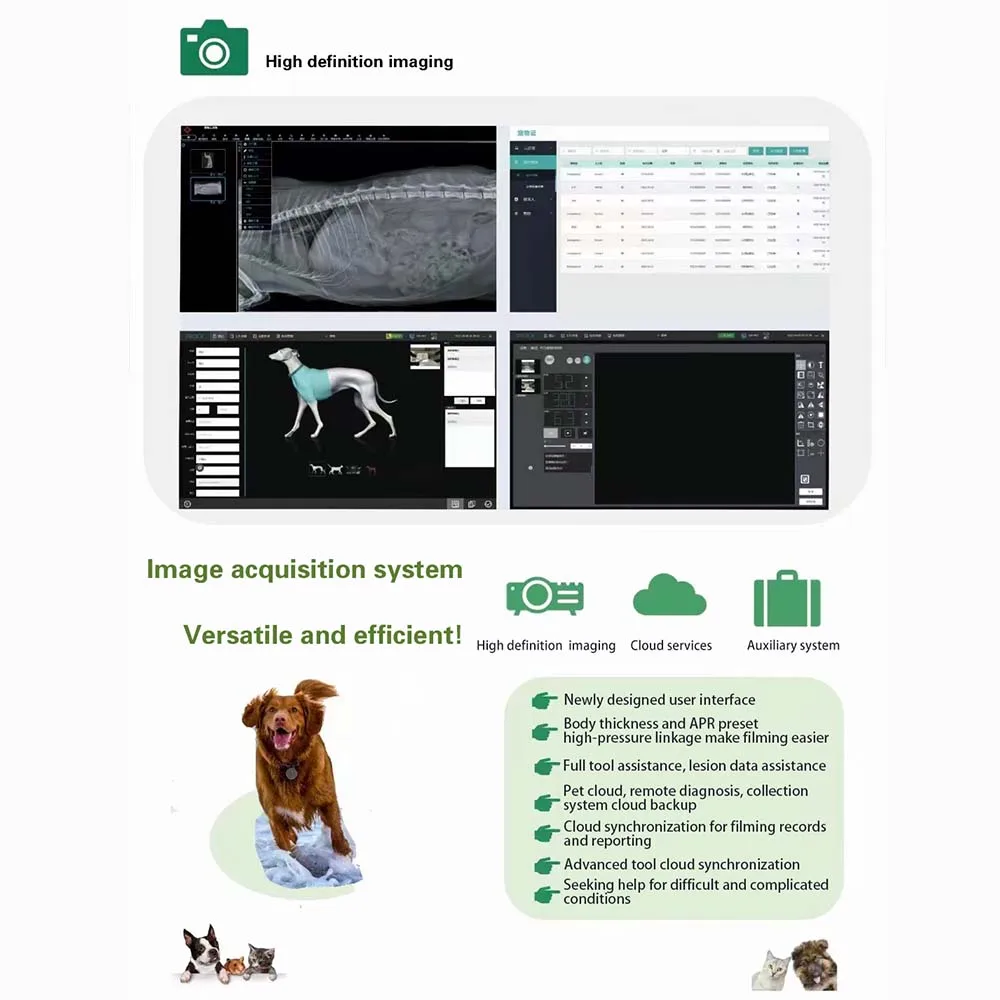

Software: Animal specific software
|
|
6.1
|
Full Chinese interface, supporting worklist to retrieve lists
|
|
6.2
|
Pre set 1400 sets of APR parameters for optimal image optimization for different shooting positions
|
|
6.3
|
Supports Win/DICOM printing, multiple printing layouts, standard DICOM 2.0/3.0 protocol compatible with various PACS workstations
|
|
6.4
|
Highly integrated software controlled high-voltage module, which can adjust high-voltage parameters on the software end and
monitor high-voltage in real-time |
|
6.5
|
Supports multiple format image exports and one click disc burning
|
|
7
|
Workstation: Desktop whole machine
|
|
7.1
|
Intel dual core, 8g memory, Win10 operating system
|
|
7.2
|
1T solid-state storage
|
|
7.3
|
24 inch IPS display
|
|
7.4
|
15.6 Touch screen
|

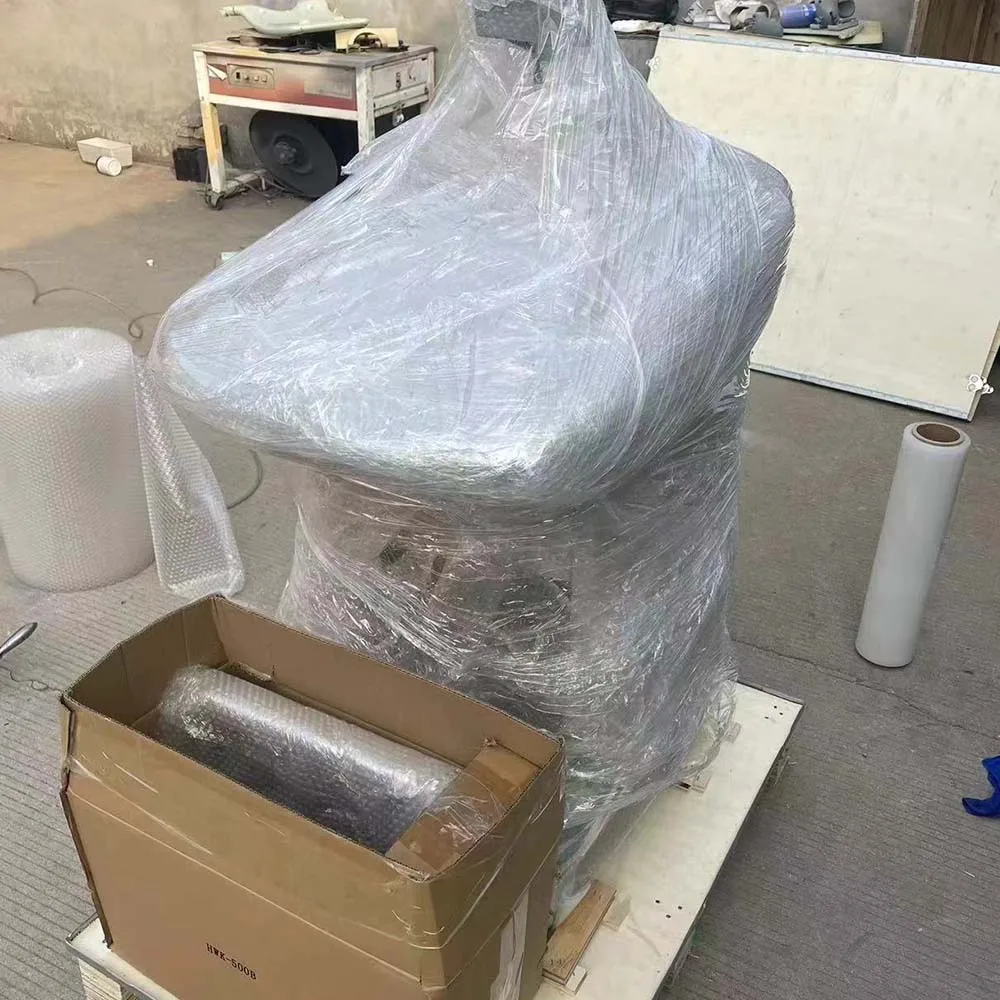

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

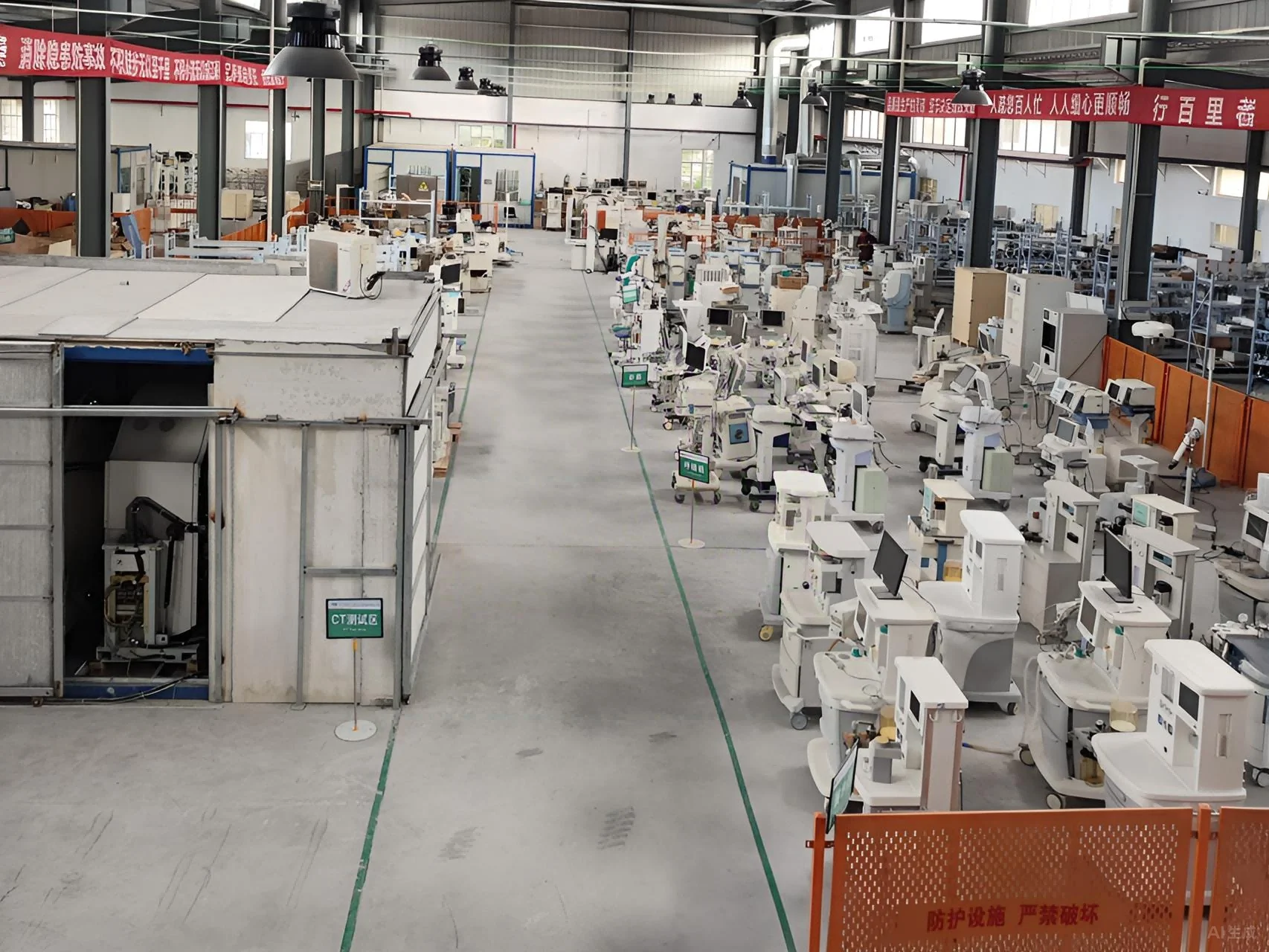

Suzhou Mingyi Dakang Medical Equipment Co., Ltd., located in Suzhou City, Jiangsu Province, is an enterprise mainly engaged in the manufacturing of specialized equipment. Having rich experience in one-stop service.
We mainly specialize in animal machinery for Southeast Asian and African countries, as well as Russia. We also provide

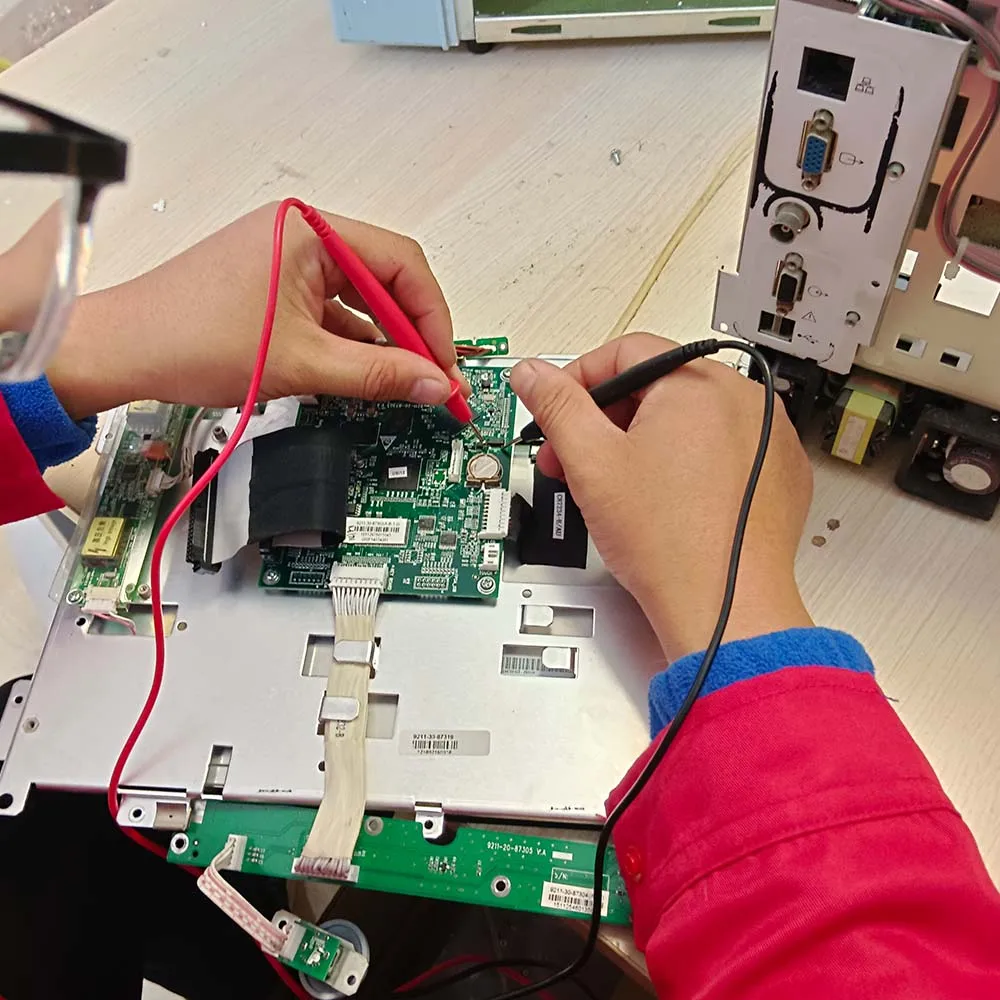

comprehensive services such as consumables, installation, repair, maintenance, and refurbishment of human and animal equipment accessories
comprehensive services such as consumables, installation, repair, maintenance, and refurbishment of human and animal equipment accessories
Our main products: second-hand Mindray 2800 model three classification blood cell analyzer, Mingyidakang animal Dr. imaging system, Mingyidakang ultrasound knife system, Mindray volatile canister simple anesthesia machine, Mindray DP50 black and white ultrasound, etc. Mingyi Dakang products are widely used in veterinary applications.
We are committed to providing high-quality medical equipment products and services to countries around the world. Dozens of professional medical device engineers and maintenance personnel can meet your needs for new, used, and refurbished machines according to your budget.
Our goal is to spread love and health, and improve global medical standards.
Our values are quality, integrity, and customer first.
Your satisfaction is our success. We warmly welcome friends from all over the world to work together to find better healthcare solutions and achieve win-win cooperation.
FAQ
1.how can we guarantee quality?
Final inspection by professional engineers before shipment
Final inspection by professional engineers before shipment
2.what can you buy from us?
Medical accessories Ultrasound equipment Radiation equipment Blood analyzer
3.why should you buy from us not from other suppliers?
We are a comprehensive service provider of medical equipment repair and value-added services. We have a huge sales network and our
own after-sales team. Whatsapp/Tel :+ 1-8615862538610
