Portable X Dental Ray Unit Instant Image With Built-in Display Digital Sensor Rvg Kit
Description
SPECIFICATIONS
Thank you for reading this post, don't forget to subscribe!After-sale Service: Online Technical Support
Applicable Voltage Range: 150V ~ 250V AC
Brand Name: Vimel
ExposureTime: 0.1-2S
FocalSpot: 0.8mm
Frequency: 30KHZ
Gross Weight: 3.1KG
Instrument classification: Class II
Model Number: Mini Ray
Package Size: 270*250*260mm
Place of Origin: Guangxi, China
Plug Type: Universal
Power Source: Electricity
Quality Certification: CCC
Rate Power: 120VA
Shelf Life: 1years
Skin to cone: 118 mm
Tube Current: 2mA
Tube Voltage: 60KV
Warranty: 1 Year
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:580.3125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:580.3125px}#detail_decorate_root .magic-3{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-6{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-7{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-8{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-9{width:750px;border-collapse:collapse}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:159px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-11{min-height:28px;padding:5px 10px;width:199px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:143px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:155px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-14{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-15{margin-bottom:0}#detail_decorate_root .magic-16{position:relative;width:100%}#detail_decorate_root .magic-17{overflow:hidden;width:750px;height:60.9375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:750px;height:60.9375px}#detail_decorate_root .magic-19{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:493.125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:493.125px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:446.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:446.25px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:765px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:765px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:698.4375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:698.4375px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:59.0625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:59.0625px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:811.875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:811.875px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:1042.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:1042.5px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:354.375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:354.375px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:260.625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:260.625px}
Product Description

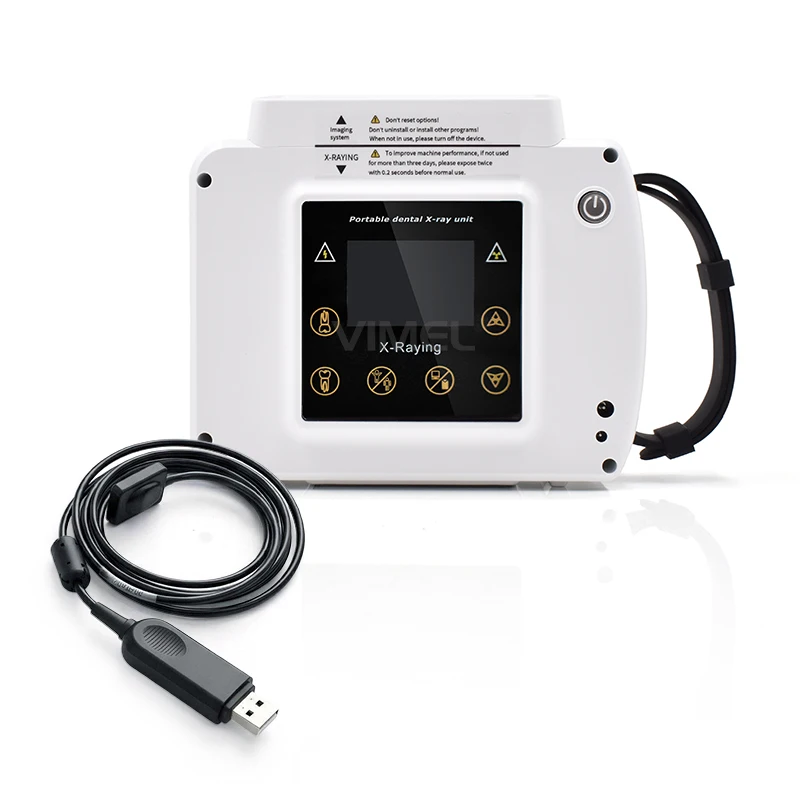

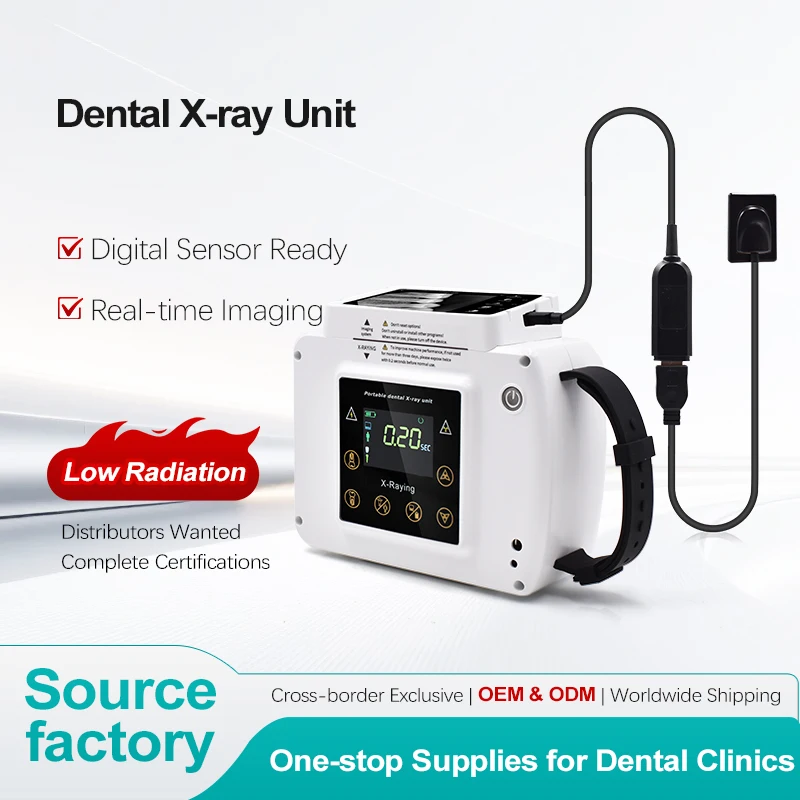

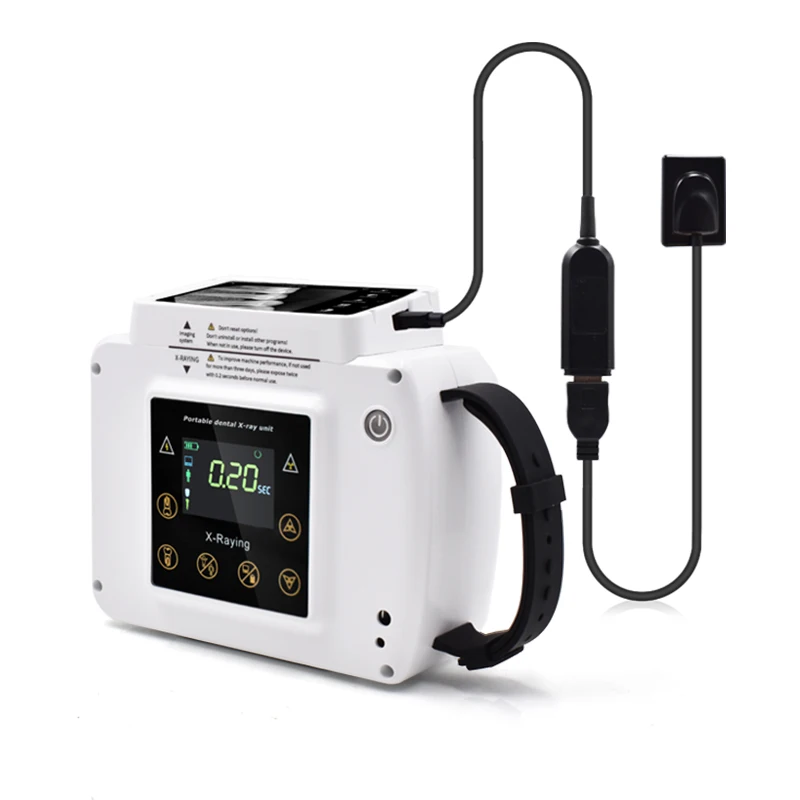

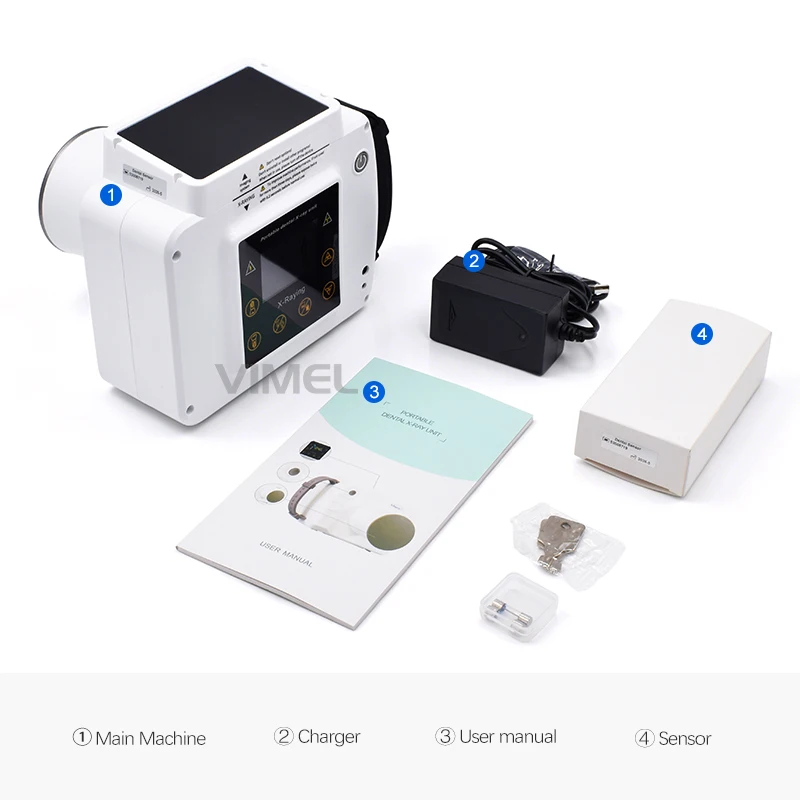

Portable X Dental Ray Unit With Sensor

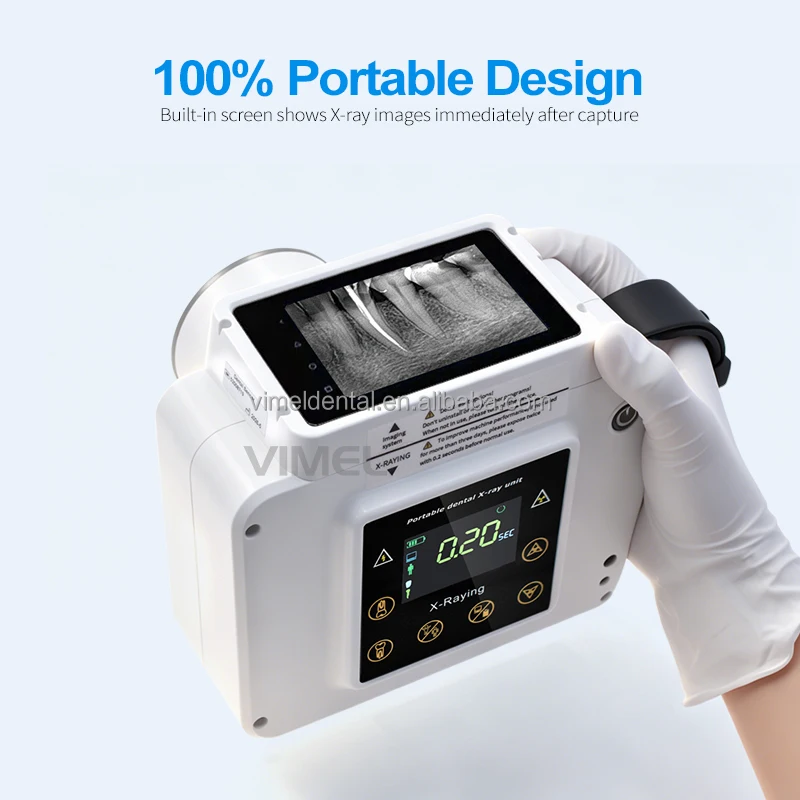

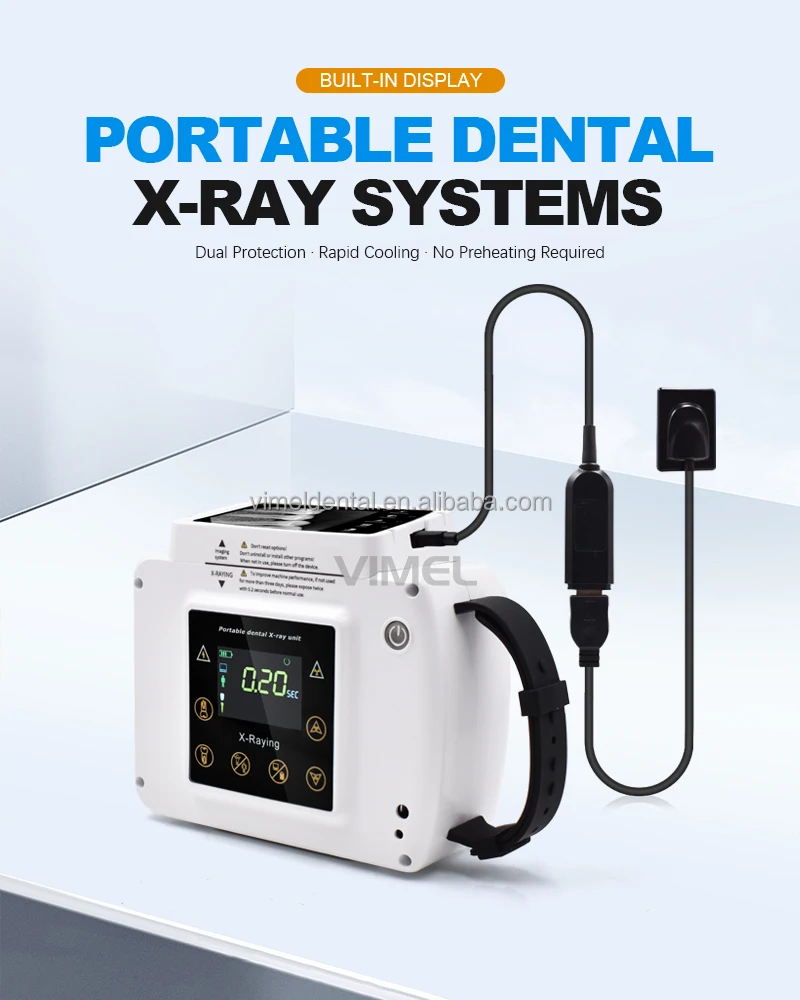

1.Instant Image Display: When connected to our sensors, built-in screen shows X-ray images immediately after capture.
2.Independent Operation: Functions seamlessly even without the sensor connected.Compatible with digital sensors, X-ray film, and image plate scanners.

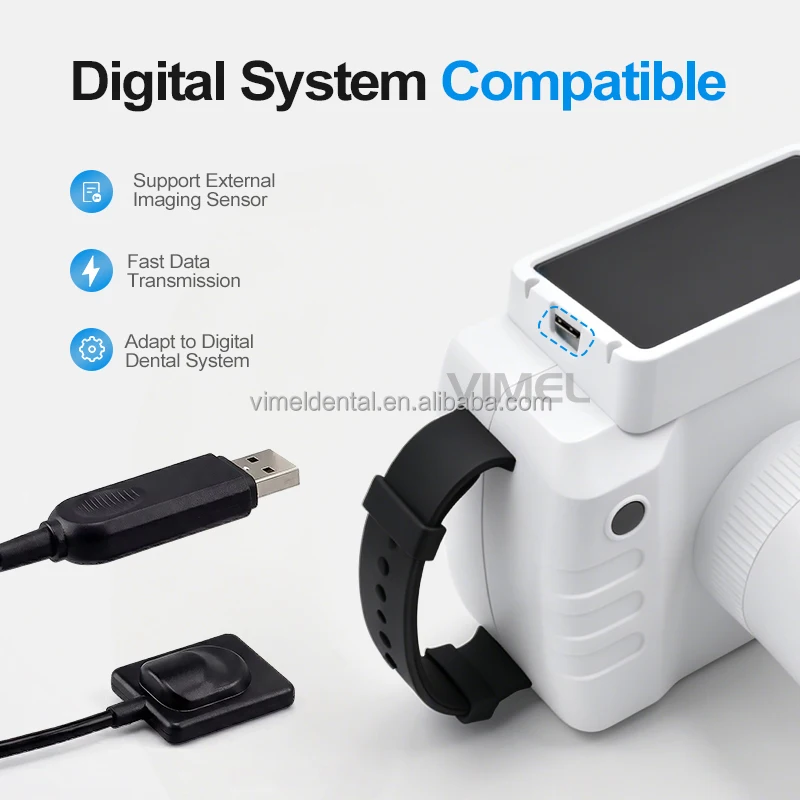

3. Flexible Sensor Use: Sensor can be paired with other X-ray machines, allowing versatile integration across different setups.
4.Enhanced Workflow: Streamlined design improves efficiency and adapts to various clinical needs.
5.Effortless Image Transfer: Easily transfer captured images to a computer via USB or Bluetooth.

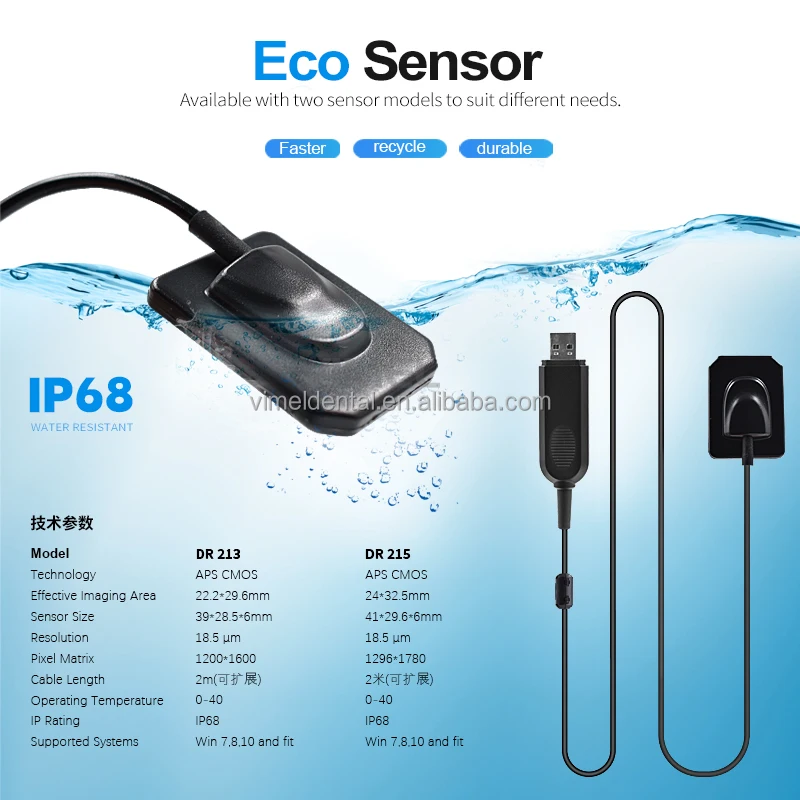

6.Sensor Options: You can choose one of the two sensor models to suit different needs.
7.Handheld Design: Easy-to-grip, portable X-ray machine for convenient use and mobility.
8.The body is small, light in weight, and the radiation leakage is less than 20μgy/h.

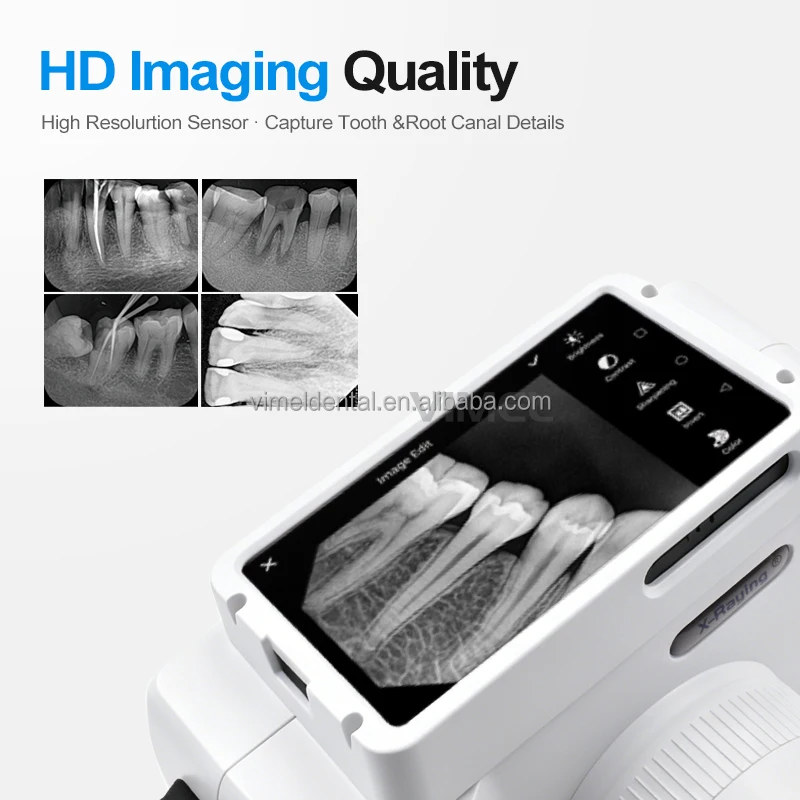

9.It has excellent image quality, portable storage, save more space.
10.It uses high frequency and DC international power supply.
11.All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.

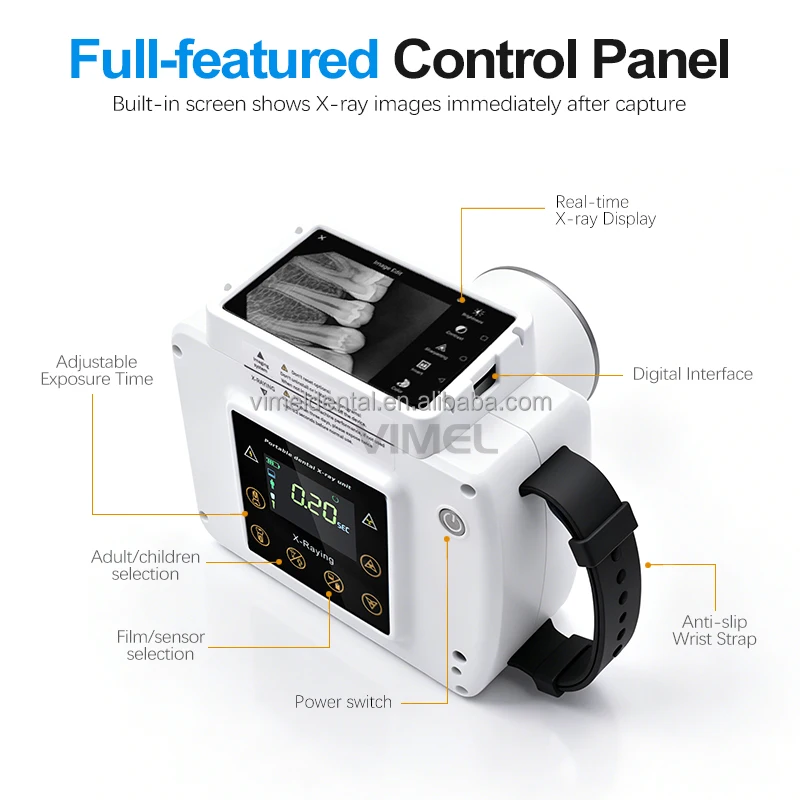

12.Different exposure times are preset for adults and children.
13.The battery is durable, it can take about 4 hundred images after fully charged.
2.Independent Operation: Functions seamlessly even without the sensor connected.Compatible with digital sensors, X-ray film, and image plate scanners.
3. Flexible Sensor Use: Sensor can be paired with other X-ray machines, allowing versatile integration across different setups.
4.Enhanced Workflow: Streamlined design improves efficiency and adapts to various clinical needs.
5.Effortless Image Transfer: Easily transfer captured images to a computer via USB or Bluetooth.
6.Sensor Options: You can choose one of the two sensor models to suit different needs.
7.Handheld Design: Easy-to-grip, portable X-ray machine for convenient use and mobility.
8.The body is small, light in weight, and the radiation leakage is less than 20μgy/h.
9.It has excellent image quality, portable storage, save more space.
10.It uses high frequency and DC international power supply.
11.All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.
12.Different exposure times are preset for adults and children.
13.The battery is durable, it can take about 4 hundred images after fully charged.
|
Tube Voltage:
|
60kv
|
Charger Input Voltage
|
AC110V-240V
|
|
Tube Current
|
2mA
|
Output Voltage
|
DC14.8V-16.8V
|
|
ExposureTime
|
0.1-2S
|
Ambient Temperature
|
5C-40°C
|
|
Frequency
|
30KHZ
|
Relative Temperature
|
＜ 75% RH
|
|
Rate Power
|
120VA
|
Gross Weight
|
3.1kg
|
|
Skin to cone
|
118mm
|

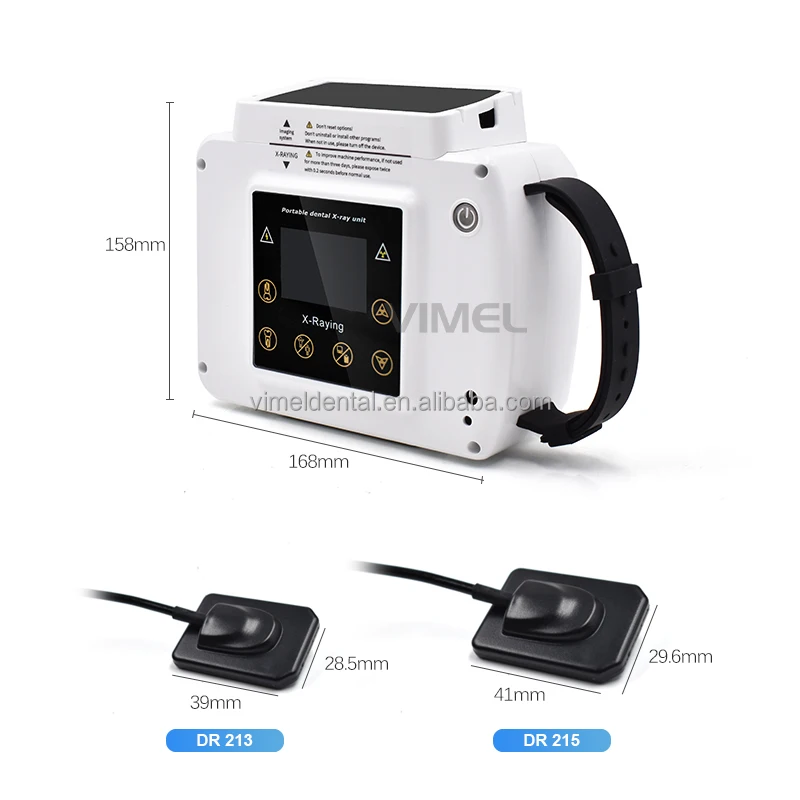

Size
|
168*158*130mm
|
|
FocalSpot
|
0.8mm
|
Package Size
|
270*250*260mm
|
Foshan Vimel Dental Equipment Co.,ltd is located in Foshan, Guangdong, China. Vimel Dental medical company is a high-tech enterprise which specialized in the dental materials, We are the supplier of Dental Products for more than 10 years. Our main products are Dental handpiece. LED curing light. Induction Lamp, Micro Motor Portable Unit, Lubricator, Apex Locator and other dental equipment and accessories. Our Main market is European, Mexico, South America, Middle East and Russia. We believed that the competitive price, excellent quality, on time delivery that competitive price, excellent quality, promoted us to the great success.
We have a profession team of medical products,"Provide the best quality and service"throuh out work and staffs. We like to be your best supplier in China. We have more than 10 years experience and believe can help your business. Through years of hard-work and constant innovation, we hadestablished good business partnerships with customers and co-worked with the esteemed enterprises in the world. Our products are very popular all around the world. Weclome to do OEM and distribute Vimel 's products.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Can we print our logo on the product?
A:Yes,and it is warmly welcome.We provide OEM and ODM service.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Can we print our logo on the product?
A:Yes,and it is warmly welcome.We provide OEM and ODM service.
Q3. Can you bear the freight?
A. The price we quote you is our factory price, not included other cost, like shipping cost and importation costs, so this cost
you need to shoulder. Our distributors also need to shoulder this cost, as we usually give them the factory price and they use their own freight forwarder to transport the goods.
Q5. How long is your delivery time?
A. Generally it is 3-7 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to
quantity.
Q6: How can i order?
A: We will make quotation after you send us your purchase plan. If you agree with the quotation, please send us your company name,
address and telephone for goods delivery. We will make proforma invoice and inform you the payment way. Goods delivery details will also be informed accordingly.
