Factory Direct Sales Medical Full Digital Ultrasound System for Veterinary Diagnostic Imaging
20 in stock
| Title | Range | Discount |
|---|---|---|
| Bulk/tiered discount - sample | 1 - 5 | 5% |
| Bulk/tiered discount - sample | 6 - 10 | 10% |
| Bulk/tiered discount - sample | 11 - 15 | 15% |
| Bulk/tiered discount - sample | 16 - 20 | 20% |
| Bulk/tiered discount - sample | 21 + | 25% |
Description
SPECIFICATIONS
Thank you for reading this post, don't forget to subscribe!
After-sale Service: Return and Replacement
Application: Animal Hospital
Brand Name: Raytan
Certificate: CE ISO
Display: 12 Inches
Feature: Windproof,Eco-Friendly,Durable
Function: Body Healthy Check Veterinary Instruments
Instrument classification: Class II
Keyword: Veterinary Instrument Animal Care Instruments
MOQ: 1 PCS
Material: Plastic
Model Number: RT03-Vet BW03
Operating Voltage: AC 110-220V
Place of Origin: Shandong, China
Power Source: Electricity
Power Supply Mode: Built-In Battery
Product name: Veterinary Ultrasound
Properties: Obstetric Appliances
Quality Certification: CE
Safety standard: GB/T 32610
Shelf Life: 3 Years
Type: Portable Ultrasonic Diagnostic Devices,Veterinary Products
Warranty: 3 Years
animal: Cat,DOG,GOAT,Horse,Rabbit
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:312px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:312px}#detail_decorate_root .magic-3{vertical-align:top}#detail_decorate_root .magic-4{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-5{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-7{text-align:center}#detail_decorate_root .magic-8{font-size:22px;background-color:#bde6ff}#detail_decorate_root .magic-9{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:300px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750px;height:300px}#detail_decorate_root .magic-12{font-size:18px}#detail_decorate_root .magic-13{width:446px}#detail_decorate_root .magic-14{overflow:hidden;width:446px;height:331.824px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:-1.1893333333333334px;margin-left:0;width:446px;height:334px}#detail_decorate_root .magic-16{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-17{font-size:18px;font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-18{overflow:hidden;width:373px;height:248.66666666666666px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:373px;height:248.66666666666666px}#detail_decorate_root .magic-20{overflow:hidden;width:373px;height:248px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-21{width:750px;border-collapse:collapse}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:261px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:442px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-24{overflow:hidden;width:446px;height:309.2266666666667px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:381px;height:305px}#detail_decorate_root .magic-26{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-28{overflow:hidden;width:446px;height:312.79466666666667px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:-58.27733333333333px;margin-left:0;width:446px;height:446px}#detail_decorate_root .magic-30{overflow:hidden;width:446px;height:246.192px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:-2.3786666666666667px;margin-left:-77.30666666666667px;width:597px;height:333px}#detail_decorate_root .magic-32{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:-53px;margin-left:-55px;width:430px;height:430px}#detail_decorate_root .magic-34{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-35{margin-top:-4px;margin-left:-68px;width:436.1623616236162px;height:300px}#detail_decorate_root .magic-36{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-37{overflow:hidden;width:184.5px;height:138.42907385697538px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:184px;height:138px}#detail_decorate_root .magic-39{overflow:hidden;width:184.5px;height:138.375px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-40{margin-top:-23.0625px;margin-left:-4.010869565217392px;width:184px;height:179px}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:184px;height:151px}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:184px;height:144px}#detail_decorate_root .magic-43{overflow:hidden;width:750px;height:415.283203125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-44{margin-top:0;margin-left:0;width:750px;height:415.283203125px}#detail_decorate_root .magic-45{overflow:hidden;width:750px;height:421.7032967032967px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:0;margin-left:0;width:750px;height:421.7032967032967px}#detail_decorate_root .magic-47{background-color:#bde6ff}#detail_decorate_root .magic-48{overflow:hidden;width:750px;height:463.56783919597996px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-49{margin-top:0;margin-left:0;width:750.0000000000001px;height:463.56783919597996px}#detail_decorate_root .magic-50{font-size:16px}
Factory Direct Sales Medical Full Digital Ultrasound System for Veterinary Diagnostic Imaging
Product Description
Basic Details
Screen Size: 12.1 inch Image multiplying factor:3.5MHz/R60 convex array probe: x0.8;x1.0,x1.2,x1.5,x1.8, x2.0( 6
modes)x0.8;x1.0(display penetration depth) E-zoom: Magnify 2 times of real time image Display modes: B;B/B;4B;B +M;M Dynamic
range: 0~ 120db adjustable
Focus position: Dynamic electron focusing
Permanent storage: 128 images
Measuring function: Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.
Annotation function: Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock display.
Annotation function: Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock display.

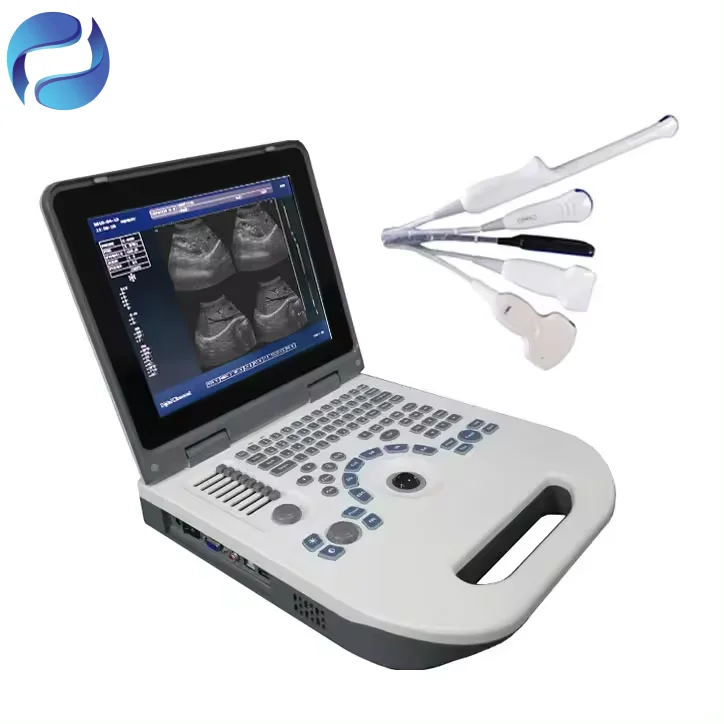

Standard Configuration
（1）One host machine
（2）One convex array probe:F=3.5MHZ
（3）One power adapter
（4）One 5200mAH L i battery Work for 3 hours straight
（5）USB port
Specification
|
Item
|
Value
|
|
Scanning mode
|
Electronic array
|
|
Display mode
|
B;B/B;4B;B +M;M
|
|
Frequency
|
Convex /Phased array probe 3.5MHz/5MHz, Linear probe 7.5MHz/10.0MHz
|
|
Display depth
|
Convex 90/160/220/305mm, Linear 20/40/60/100mm
|
|
Scan angle and width
|
Convex 50°, Phased array 80°, Linear 40mm
|
|
Image adjust
|
Gain, DYN, Focus, Depth, Harmonic, Denoise
|
|
Puncture assist function
|
The function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement, and the
enhancement function of needle point development |
|
Permanent storage
|
128 images
|
|
Focus position
|
1,2,3 and 4-segments dynamic electron focusing
|
|
Dynamic range
|
0~ 120db adjustable
|
|
Image multiplying factor
|
3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0 ( 6modes)x0.8, x2.0 (display penetration depth)
|
|
Dimension
|
44*24*47cm
|
|
Weight
|
6.5kg
|
Manufacturing Technique
The user-friendly intelligent design is also very thoughtful. It can automatically save parameters based on the
user’s operation habits, and the default optimal settings are available upon startup. It also supports flexible menu
modifications.
user’s operation habits, and the default optimal settings are available upon startup. It also supports flexible menu
modifications.
Feature
* High Resolution Display: 12.1-inch screen for detailed imaging.
* Multiple Applications: Suitable for OB, Cardiac, Gynecology, and clinic use.
* Quality Assurance: CE and ISO certified for medical reliability.
* Portable Design: Ideal for hospital and clinic settings.
* Long Warranty: Enjoy 3-year quality assurance.
Advantages:
The portable design better meets clinical needs. It is equipped with dual portable packaging of a rolling suitcase and a laptop
bag, making mobile diagnosis easy to handle.
The 5200mAh lithium battery supports continuous operation for 3 hours
Application
Portable ultrasound machine also plays a significant role in clinical diagnosis, emergency medical care, clinical education and training, community medicine and sports medicine.
Packing & Delivery
Company Profile
Shandong Raytan Medical Equipment Co., Ltd.
As a world-renowned professional medical device supplier rooted in China, We are equipped with standard medical equipment and an exclusive professional team. Recognized as one of China’s most professional and globally acclaimed medical device suppliers, we have accumulated years of export expertise and are committed to delivering one-stop product support and customized solutions for clients worldwide.We specialize in integrated sales and services of diverse medical devices, with our portfolio covering 3 major categories and 300 standard models mainly focusing on the research and sales of ultrasound machines Black and white ultrasound machine & color ultrasound machine(include Human and Veterinary version), available as handheld wireless ultrasound machine,portable notebook ultrasound machine and trolley cart ultrasound machines , patient monitors, ECG devices, defibrillators and X-ray machines.
As a world-renowned professional medical device supplier rooted in China, We are equipped with standard medical equipment and an exclusive professional team. Recognized as one of China’s most professional and globally acclaimed medical device suppliers, we have accumulated years of export expertise and are committed to delivering one-stop product support and customized solutions for clients worldwide.We specialize in integrated sales and services of diverse medical devices, with our portfolio covering 3 major categories and 300 standard models mainly focusing on the research and sales of ultrasound machines Black and white ultrasound machine & color ultrasound machine(include Human and Veterinary version), available as handheld wireless ultrasound machine,portable notebook ultrasound machine and trolley cart ultrasound machines , patient monitors, ECG devices, defibrillators and X-ray machines.
Upholding the win-win principle, we have earned a stellar global reputation with attentive services, superior quality and cost-effective pricing. We sincerely invite global partners to join hands for shared prosperity, and welcome your innovative ideas, customization needs or feedback to deliver solutions beyond expectations.
FAQ
1. Who are we?
We are a company specializing in Autoclave Pressure Steam Sterilizer, Hematology analyzer, urine analyzer, biochemical analyzer, microscope, vein detector, high-temperature sterilizer, suction pipette, centrifuge, dental radiation, animal dental machine, animal examination table, portable human radiation, visual laryngoscope, visual Otoscope, Shadowless lamp, operating table and etc.2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
We are a company specializing in Autoclave Pressure Steam Sterilizer, Hematology analyzer, urine analyzer, biochemical analyzer, microscope, vein detector, high-temperature sterilizer, suction pipette, centrifuge, dental radiation, animal dental machine, animal examination table, portable human radiation, visual laryngoscope, visual Otoscope, Shadowless lamp, operating table and etc.2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. Why should you buy from us not from other suppliers?
We Raytan is in the medical products field for more than 20 years.
Additional information
| Color | Grey |
|---|
