Cheap Full Digital Veterinary Pet Scanner 12 Inch Animal Portable Ultrasound Handheld Device CE Certified
20 in stock
| Title | Range | Discount |
|---|---|---|
| Bulk/tiered discount - sample | 1 - 5 | 5% |
| Bulk/tiered discount - sample | 6 - 10 | 10% |
| Bulk/tiered discount - sample | 11 - 15 | 15% |
| Bulk/tiered discount - sample | 16 - 20 | 20% |
| Bulk/tiered discount - sample | 21 + | 25% |
Description
SPECIFICATIONS
Thank you for reading this post, don't forget to subscribe!
After-sale Service: Return and Replacement
Application: Animal Hospital
Brand Name: Raytan
Certificate: CE ISO
Display: 12 Inches
Function: Body Healthy Check Veterinary Instruments
Instrument classification: Class II
Keyword: Veterinary Instrument Animal Care Instruments
Language: English
MOQ: 1 PCS
Material: Plastic
Model Number: RT03-Vet BW03
Operating Voltage: AC 110-220V
Place of Origin: Shandong, China
Power Source: Electricity
Power Supply Mode: Built-In Battery
Product name: Veterinary Ultrasound
Properties: Obstetric Appliances
Quality Certification: CE
Safety standard: GB/T 32610
Shelf Life: 3 Years
Type: Portable Ultrasonic Diagnostic Devices,Veterinary Products
Warranty: 3 Years
animal: Cat,DOG,GOAT,Rabbit
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:383.1428571428571px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:-27px;margin-left:-2px;width:750px;height:383.1428571428571px}#detail_decorate_root .magic-3{vertical-align:top}#detail_decorate_root .magic-4{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-5{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-7{text-align:center}#detail_decorate_root .magic-8{font-size:22px;background-color:#bde6ff}#detail_decorate_root .magic-9{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:336.5253077975376px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750px;height:336.5253077975376px}#detail_decorate_root .magic-12{font-size:18px}#detail_decorate_root .magic-13{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-14{font-size:18px;font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-15{width:446px}#detail_decorate_root .magic-16{overflow:hidden;width:446px;height:331.824px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:-1.1893333333333334px;margin-left:0;width:446px;height:334px}#detail_decorate_root .magic-18{overflow:hidden;width:446px;height:312.79466666666667px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:-38.05866666666667px;margin-left:28.544px;width:401px;height:401px}#detail_decorate_root .magic-20{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-22{overflow:hidden;width:446px;height:246.192px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:-2.3786666666666667px;margin-left:-77.30666666666667px;width:597px;height:333px}#detail_decorate_root .magic-24{overflow:hidden;width:446px;height:309.2266666666667px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:-48.76266666666667px;margin-left:83.25333333333333px;width:361px;height:361px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:813px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:813px}#detail_decorate_root .magic-28{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:-74px;margin-left:-31px;width:410px;height:410px}#detail_decorate_root .magic-30{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-31{margin-top:-75px;margin-left:-27px;width:391px;height:391px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:500px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:500px}#detail_decorate_root .magic-34{width:750px;border-collapse:collapse}#detail_decorate_root .magic-35{min-height:28px;padding:5px 10px;width:261px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-36{min-height:28px;padding:5px 10px;width:442px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-37{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-38{overflow:hidden;width:184.5px;height:138.42907385697538px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:184px;height:138px}#detail_decorate_root .magic-40{overflow:hidden;width:184.5px;height:138.375px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-41{margin-top:-23.0625px;margin-left:-4.010869565217392px;width:184px;height:179px}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:184px;height:151px}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:184px;height:144px}#detail_decorate_root .magic-44{overflow:hidden;width:750px;height:421.7032967032967px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:750px;height:421.7032967032967px}#detail_decorate_root .magic-46{overflow:hidden;width:750px;height:463.56783919597996px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:750.0000000000001px;height:463.56783919597996px}#detail_decorate_root .magic-48{font-size:16px}
Cheap Full Digital Veterinary Pet Scanner 12 Inch Animal Portable Ultrasound Handheld Device CE Certified
Product Description
Basic Details
Screen Size: 12.1 inch Image multiplying factor:3.5MHz/R60 convex array probe: x0.8;x1.0,x1.2,x1.5,x1.8, x2.0( 6
modes)x0.8;x1.0(display penetration depth) E-zoom: Magnify 2 times of real time image Display modes: B;B/B;4B;B +M;M Dynamic
range: 0~ 120db adjustable
Focus position: Dynamic electron focusing
Permanent storage: 128 images
Measuring function: Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.
Annotation function: Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock display.
Annotation function: Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock display.

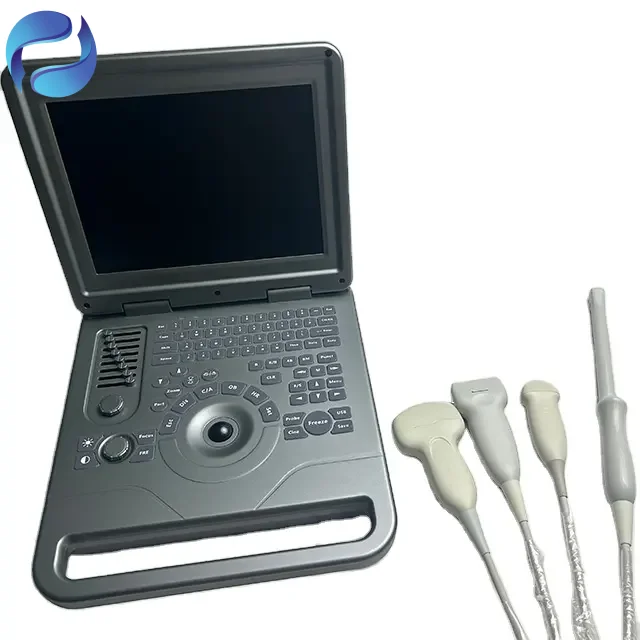

Standard Configuration
（1）One host machine
（2）One convex array probe:F=3.5MHZ
（3）One power adapter
（4）One 5200mAH L i battery Work for 3 hours straight

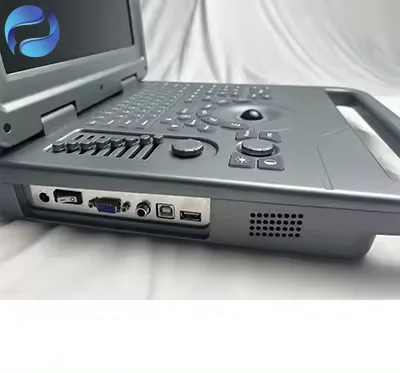

（5）USB port
Feature
* High Resolution Display: 12.1-inch screen for detailed imaging.
* Multiple Applications: Suitable for OB, Cardiac, Gynecology, and clinic use.
* Quality Assurance: CE and ISO certified for medical reliability.
* Portable Design: Ideal for hospital and clinic settings.
* Long Warranty: Enjoy 3-year quality assurance.
Advantages:
The portable design better meets clinical needs. It is equipped with dual portable packaging of a rolling suitcase and a laptop
bag, making mobile diagnosis easy to handle.
The 5200mAh lithium battery supports continuous operation for 3 hours
The user-friendly intelligent design is also very thoughtful. It can automatically save parameters based on the
user’s operation habits, and the default optimal settings are available upon startup. It also supports flexible menu
modifications.
user’s operation habits, and the default optimal settings are available upon startup. It also supports flexible menu
modifications.
Full-screen character annotations for hospital name, patient information, probe position, etc., and real-time clock display, make case management more standardized and efficient. It integrates high-definition imaging, all-round diagnosis, portable practicality, and intelligent convenience. With its powerful configuration, it empowers medical diagnosis. It is the ideal choice for all levels of medical institutions, grassroots clinics, and mobile medical services, providing more accurate diagnosis services for patients and enhancing the efficiency of medical staff!
Application
Portable ultrasound machine also plays a significant role in clinical diagnosis, emergency medical care, clinical education and training, community medicine and sports medicine.
Specification
|
Item
|
Value
|
|
Scanning mode
|
Electronic array
|
|
Display mode
|
B;B/B;4B;B +M;M
|
|
Frequency
|
Convex /Phased array probe 3.5MHz/5MHz, Linear probe 7.5MHz/10.0MHz
|
|
Display depth
|
Convex 90/160/220/305mm, Linear 20/40/60/100mm
|
|
Scan angle and width
|
Convex 50°, Phased array 80°, Linear 40mm
|
|
Image adjust
|
Gain, DYN, Focus, Depth, Harmonic, Denoise
|
|
Puncture assist function
|
The function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement, and the
enhancement function of needle point development |
|
Permanent storage
|
128 images
|
|
Focus position
|
1,2,3 and 4-segments dynamic electron focusing
|
|
Dynamic range
|
0~ 120db adjustable
|
|
Image multiplying factor
|
3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0 ( 6modes)x0.8, x2.0 (display penetration depth)
|
|
Dimension
|
44*24*47cm
|
|
Weight
|
6.5kg
|
